CYLINDER HEAD GASKET - RH

Service repair no - 12.29.03

Remove

  1. Remove exhaust manifolds. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  2. Remove camshaft timing belt. See this section.
  3. Depressurise fuel system. See ENGINE MANAGEMENT SYSTEM - MEMS, Adjustments.
  4. Drain cooling system. See COOLING SYSTEM - ’KV6’, Adjustments.

CAUTION: Remove drain plug from cylinder block to ensure retained coolant does not enter the intake ports in the cylinder head.

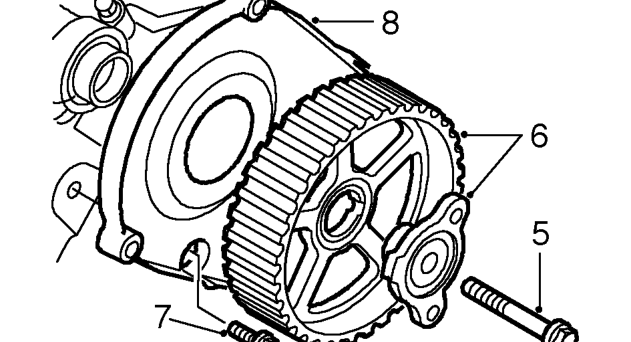

Cylinder head gasket - rh – Drain cooling system. See COOLING SYSTEM - ’KV6’, Adjustments.
  1. Remove rear inlet camshaft gear bolt.
  2. Remove gear and hub assembly.
  3. Remove 4 bolts securing timing belt cover backplate.
  4. Remove backplate.

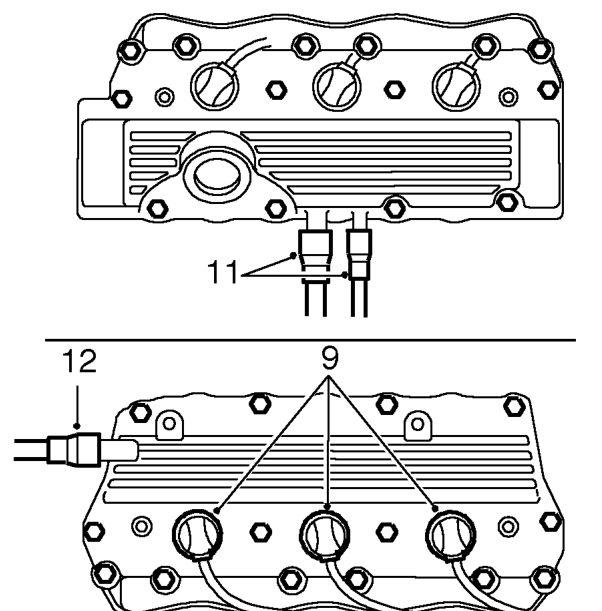

Cylinder head gasket - rh – Remove backplate.
  1. Disconnect 3 h.t. leads from spark plugs.
  2. Release leads from clips.
  3. Remove 2 breather hoses from LH cam cover.
  4. Remove breather hose from RH camshaft cover.

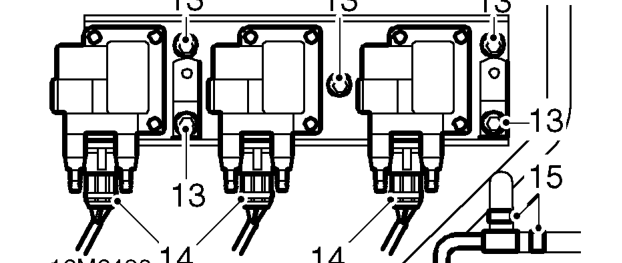

Cylinder head gasket - rh – Remove breather hose from RH camshaft cover.
  1. Remove 5 bolts securing coil mounting plate to inlet manifold.
  2. Disconnect 3 coil multiplugs and move coil and mounting plate assembly aside.
  3. Release clip and disconnect manifold coolant bleed hose from ’T’ piece.
