Engine mounting - RH

Refit

1. Engage engine mounting in bracket and position mounting on front cross-member.
2. Align slave cylinder bracket fixing.
3. Fit bolts securing mounting bracket to bell housing and tighten to 85 Nm.
4. Fit bolts securing mounting to front cross-member and tighten to 45 Nm.
5. Fit nut securing mounting to bracket and tighten to 85 Nm.
6. Remove jack.
7. Fit top hose into clip.
8. Position heater outlet pipe and tighten bolts.
9. Fit underbelly panel. See BODY, Repairs.
10. Connect battery earth lead.

ENGINE MOUNTING - RH

Service repair no - 12.45.03

Remove

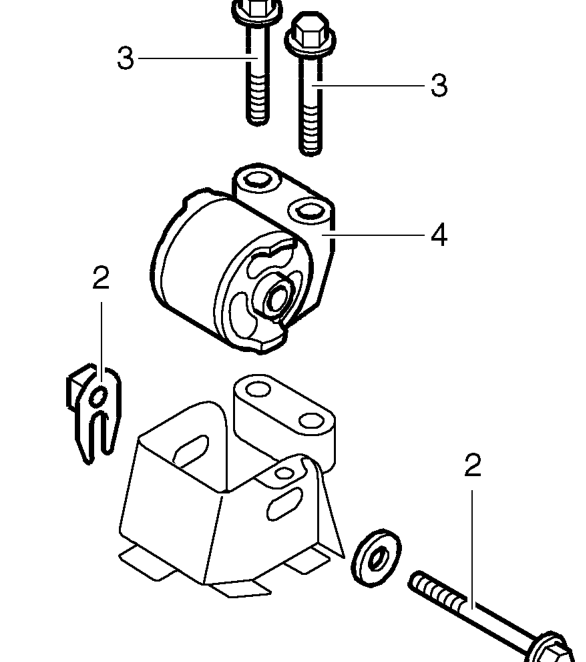

1. Position jack under engine and support weight of power unit.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

2. Remove bolt and plain washer securing engine RH mounting to body bracket and retrieve special nut.
3. Remove 2 bolts securing RH mounting to engine bracket.
4. Release RH mounting from body bracket and remove.
