ENGINE AND AUTOMATIC GEARBOX

Service repair no - 12.37.01/99

Remove

  1. Release spring clips retaining bonnet struts.
  2. Disconnect struts and tie bonnet back.
  3. Remove air cleaner assembly. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  4. Remove battery. See ELECTRICAL, Repairs.
  5. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
  6. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove radiator assembly. See COOLING SYSTEM - ’KV6’, Repairs.
Engine and automatic gearbox – Remove radiator assembly. See COOLING SYSTEM - ’KV6’, Repairs.

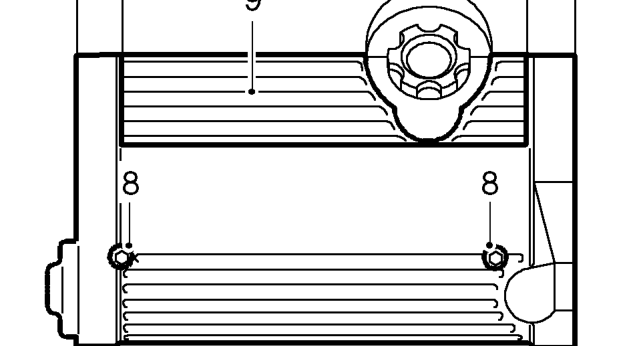

  1. Remove 2 screws securing spark plug cover.
  2. Remove cover.
Engine and automatic gearbox – Remove cover.

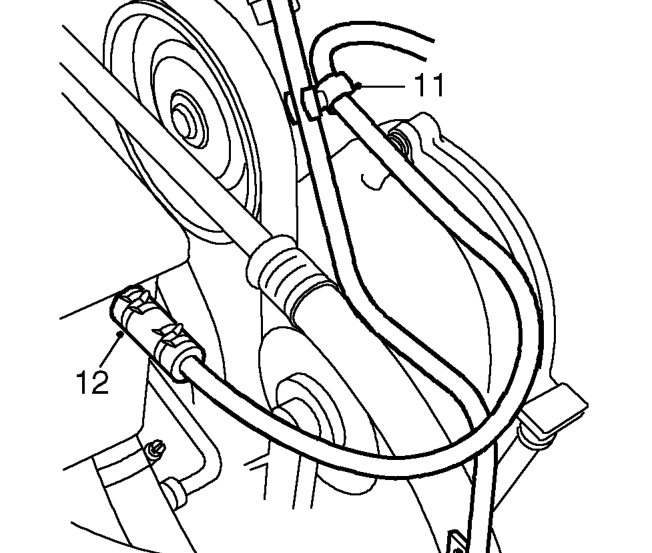

  1. Remove bolt securing PAS pipe to engine bracket.
  2. Release coolant hose from clip on PAS pipe.
  3. Release clip and disconnect hose from expansion tank.
