Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and automatic gearbox (page 3 of 6)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and automatic gearbox · page 3 of 6
Diagram

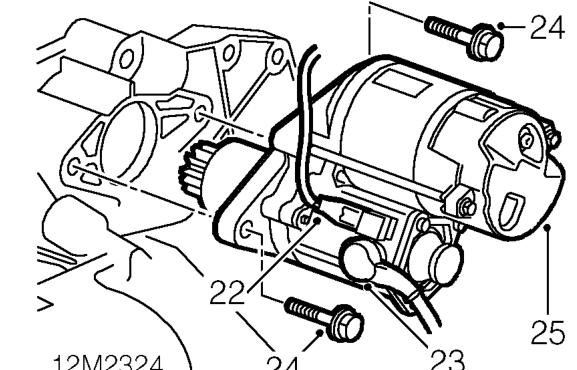

  1. Disconnect Lucar from starter solenoid.
  2. Remove nut and disconnect battery lead from starter solenoid.
  3. Remove 2 bolts securing starter motor.
  4. Remove starter motor.
Remove starter motor.

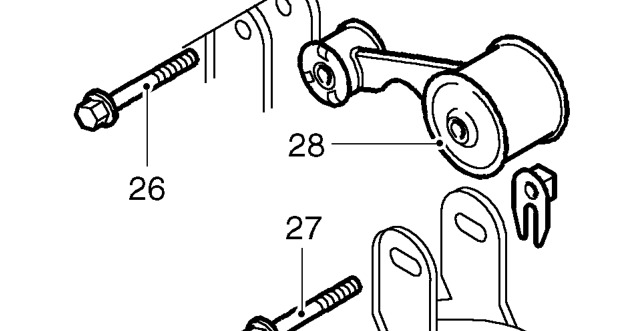

  1. Remove bolt securing rear steady bar to body bracket
  2. Remove bolt securing steady bar to engine bracket and collect special nut.
  3. Remove steady bar.
Remove steady bar.

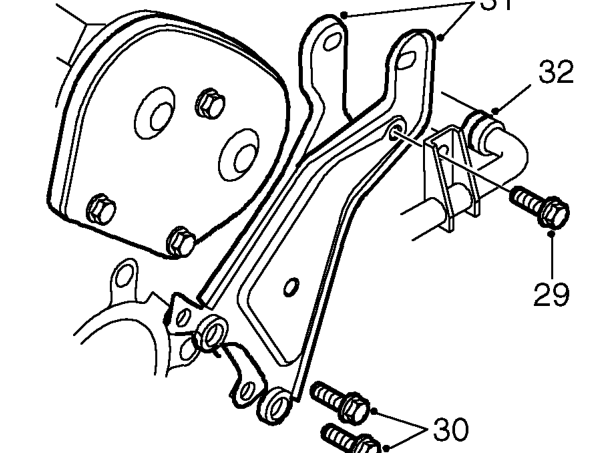

  1. Remove bolt securing coolant pipe to steady bar bracket.
  2. Remove 2 bolts securing steady bar brackets to gearbox.
  3. Remove steady bar brackets.
  4. Slacken clip securing heater return hose to coolant pipe and disconnect hose.

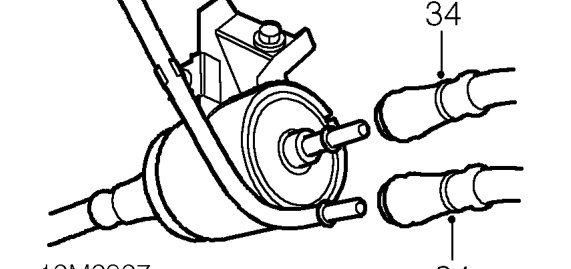

  5. Position cloth under fuel filter to absorb fuel spillage.
Position cloth under fuel filter to absorb fuel spillage.
  1. Disconnect fuel feed and return hoses.

CAUTION: Plug the connections.

  1. Remove cloth.
