Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and automatic gearbox (page 5 of 6)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and automatic gearbox · page 5 of 6
Diagram

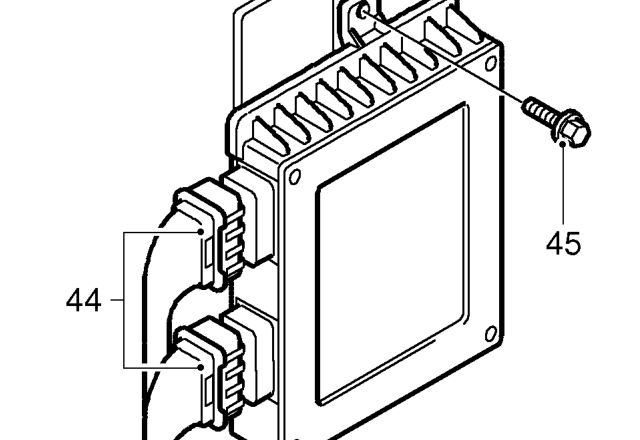

  1. Disconnect 2 multiplugs from ECM.
  2. Remove bolt securing ECM and remove ECM.
Remove bolt securing ECM and remove ECM.

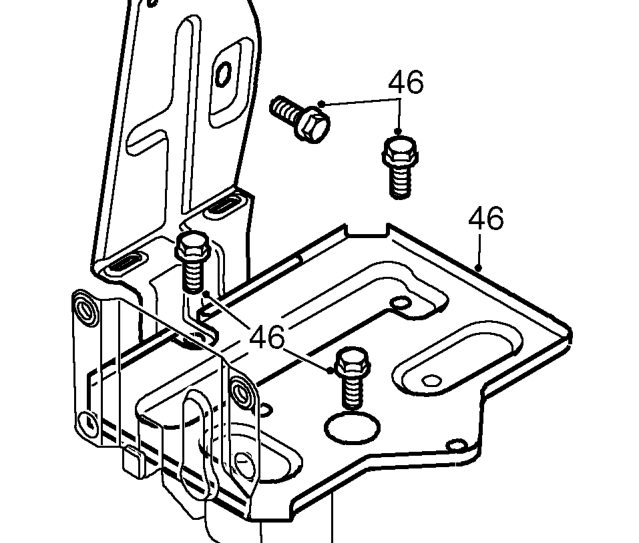

  1. Remove 4 bolts securing battery tray and remove battery tray.
Remove 4 bolts securing battery tray and remove battery tray.

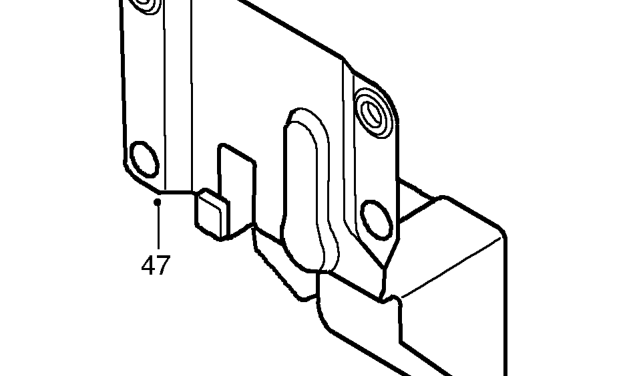

  1. Remove 3 bolts securing air cleaner bracket and remove bracket.
Remove 3 bolts securing air cleaner bracket and remove bracket.

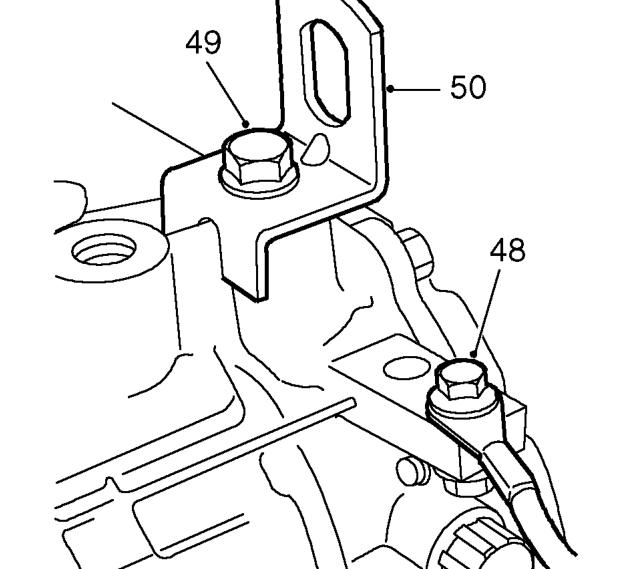

  1. Remove bolt securing earth lead to gearbox.
  2. Remove bolt securing lifting bracket to gearbox.
  3. Remove bracket.
  4. Remove road wheel(s).
