Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and automatic gearbox (page 6 of 6)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and automatic gearbox · page 6 of 6
  1. Drain gearbox fluid. See AUTOMATIC GEARBOX - ’JF403E’, Adjustments.
  2. Drain engine oil. See Adjustments.
Drain engine oil. See Adjustments.

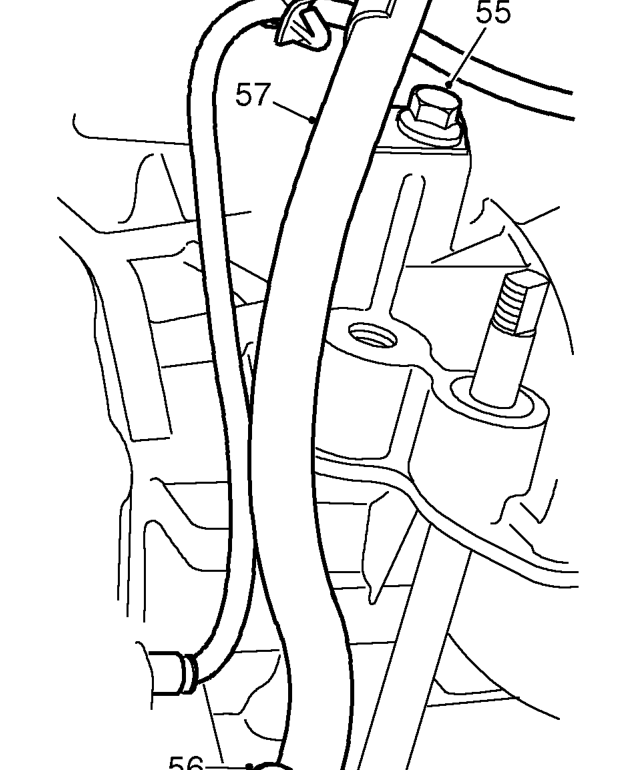

  1. Release harness clip from gearbox dipstick tube.
  2. Remove bolt securing dipstick tube bracket.
  3. Remove bolt securing dipstick tube.
  4. Remove dipstick tube, remove and discard ’O’ ring.

CAUTION: Plug gearbox.

Remove dipstick tube, remove and discard ’O’ ring.

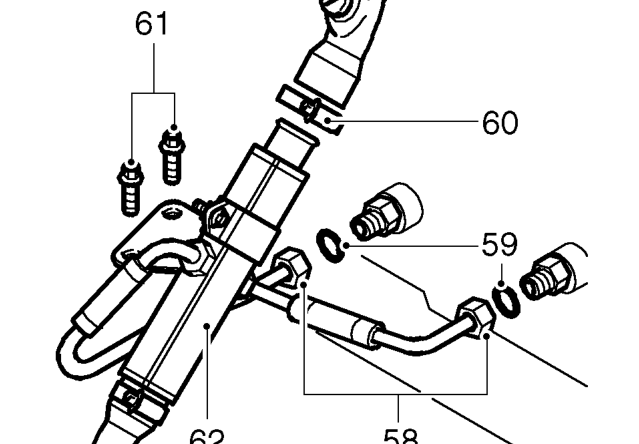

  1. Disconnect 2 oil cooler unions.
  2. Remove and discard 2 oil cooler union ’O’ rings.

CAUTION: Plug the connections.

  1. Loosen clip securing hose to oil cooler.
  2. Remove 2 bolts securing oil cooler bracket to engine front mounting bracket.
  3. Remove oil cooler.
