Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine steady bar - rear

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Engine steady bar - rear
Engine - KV6Engine steady bar - rear

ENGINE STEADY BAR - REAR

Service repair no - 12.45.22

Remove

  1. Disconnect battery earth lead.

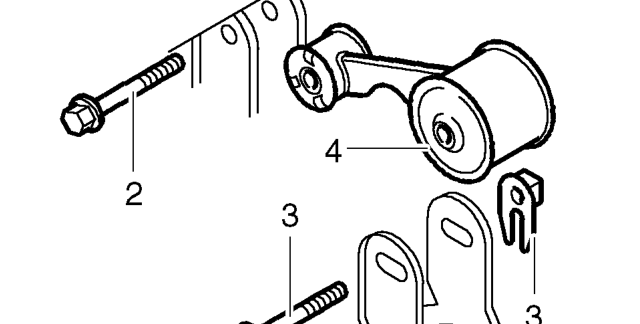

Engine steady bar - rear – Disconnect battery earth lead.
  1. Remove bolt securing steady bar to body bracket, use 300 mm extension and universal joint.
  2. Remove bolt securing steady bar to engine bracket and collect special nut.
  3. Remove steady bar from brackets.

Refit

  1. Fit steady bar to brackets, cut out facing downwards.
  2. Fit bolt securing steady bar to body bracket, finger tight.
  3. Fit bolt securing stead bar to engine bracket, locate fork of special nut in bracket peg.
  4. Tighten bolts to 85 Nm.

FLYWHEEL

Service repair no - 12.53.07

Remove

  1. Remove clutch assembly, See CLUTCH, Repairs.
  2. Leave flywheel locking tool 18G 1746 in place.
Flywheel – Leave flywheel locking tool 18G 1746 in place.

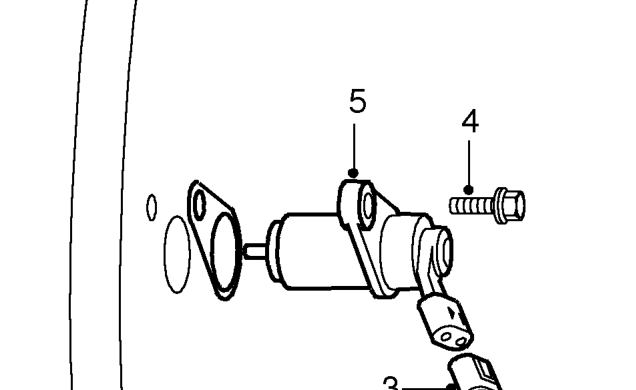

  1. Disconnect multiplug from crankshaft position sensor.
  2. Remove bolt securing crankshaft position sensor to flywheel housing.
  3. Remove crankshaft position sensor.
Flywheel – Remove crankshaft position sensor.

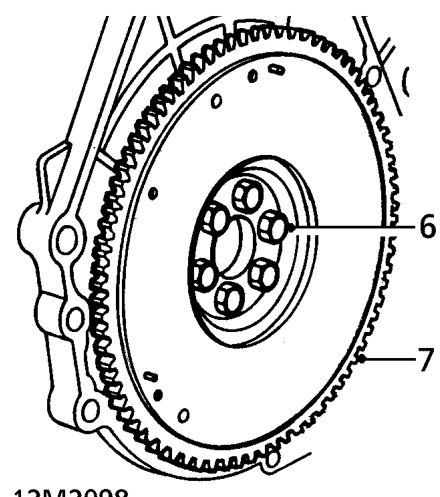

  1. Remove and discard 6 bolts securing flywheel to crankshaft.
  2. Remove flywheel from crankshaft.
