CAMSHAFT TIMING BELT - AIR CONDITIONING

Service repair no - 12.65.18/20

Remove

  1. Disconnect battery earth lead.
  2. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH road wheel.
Camshaft timing belt - air conditioning – Remove RH road wheel.

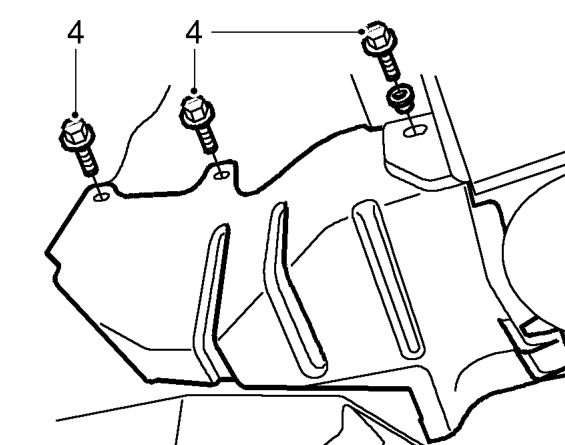

  1. Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove shield.
  2. Remove oil filter. See this section.
  3. Remove underbelly panel. See BODY, Repairs.
Camshaft timing belt - air conditioning – Remove underbelly panel. See BODY, Repairs.

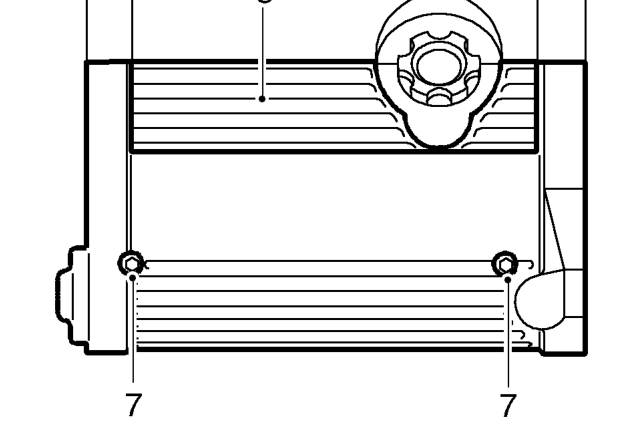

  1. Remove 2 bolts securing spark plug cover.
  2. Remove cover.
  3. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
Camshaft timing belt - air conditioning – Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.

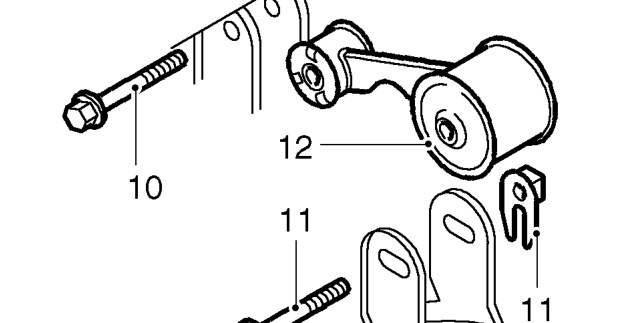

  1. Remove bolt securing rear steady bar to body bracket.
  2. Remove bolt securing steady bar to engine bracket and collect special nut.
  3. Remove steady bar from brackets.
  4. Remove LH rear timing belt cover. See this section.
