Camshaft timing belt (page 6 of 6)

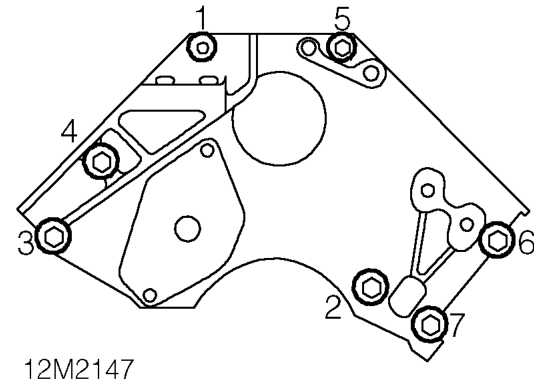

20. Tighten engine mounting bracket bolts in the sequence shown to the following torques: Bolt 1, 32 Nm. Bolt 5, 45 Nm. Bolts 2, 3, 4, 6 and 7, 85 Nm.
21. Position ancillary belt tensioner, fit bolts and tighten to 25 Nm.
22. Fit blanking plugs to engine mounting bracket.
23. Automatic models: Clean and refit transmission fluid dipstick.
24. Clean lower timing belt cover.
25. Fit cover, fit bolts and tighten to 9 Nm.
26. Clean crankshaft pulley.
27. Fit crankshaft pulley to crankshaft gear.

CAUTION: Ensure indent on pulley locates over lug on gear.

28. Fit crankshaft pulley bolt and washer, tighten bolt to 160 Nm.
29. Remove tool 18G 1746.
30. Position PAS pump to bracket, fit bolts and tighten to 25 Nm.
31. Clean exhaust camshaft front seal locations and fit new seals.

CAUTION: Sealing edge of seal and mating face must be clean and dry.

32. Align dip stick tube bracket to cylinder head, fit bolt and tighten to 9 Nm.
33. Fit RH front timing cover taking care not to displace seal.
34. Fit 3 bolts securing cover and tighten to 4 Nm.
35. Clean spacer and mating face on engine bracket.
36. Fit spacer to mounting bracket.
37. Fit alternator. See ELECTRICAL, Repairs.
38. Fit LH front timing belt cover. See this section.
39. Fit rear steady bar to brackets, cut out facing downwards.
40. Fit bolt securing steady bar to body bracket, finger tight.
41. Fit bolt securing steady bar to engine bracket, locate fork of special nut in bracket peg.
42. Tighten bolts to 85 Nm.
43. Fit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
44. Fit LH rear timing belt cover. See this section.
45. Fit spark plug cover, fit bolts and tighten to 4 Nm.
46. Fit oil filter. See this section.
47. Fit splash shield, align PAS hose clip, fit spacer to front bolt and tighten bolts.
48. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
49. Remove stand(s) and lower vehicle.
