Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Converter drive plate

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Converter drive plate
Engine - KV6Converter drive plate

Refit

  1. Clean bolt holes in crankshaft using an old flywheel bolt with two saw cuts at an angle of 45°to the bolt shank.
  2. Clean flywheel and mating face of crankshaft.
  3. Fit flywheel to crankshaft.

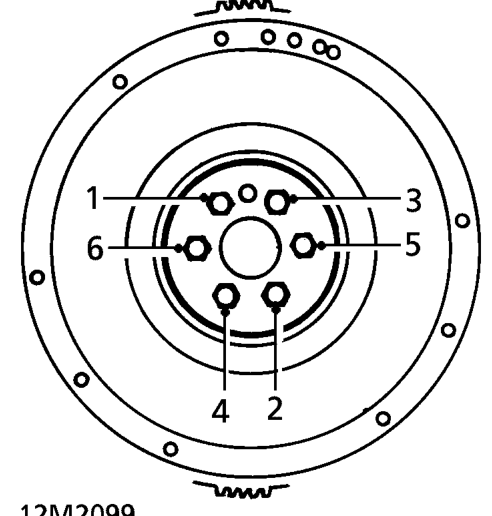

Fit flywheel to crankshaft.
  1. Fit NEW bolts securing flywheel to crankshaft and tighten progressively in sequence shown to 100 Nm.
  2. Clean crankshaft position sensor and mating face of flywheel housing.
  3. Fit crankshaft position sensor, fit bolt and tighten to 8 Nm.
  4. Connect multiplug to crankshaft position sensor.
  5. Fit clutch assembly, See CLUTCH, Repairs.

CONVERTER DRIVE PLATE

Service repair no - 12.53.13

Remove

  1. Remove automatic gearbox. See AUTOMATIC GEARBOX - ’JF403E’, Repairs.

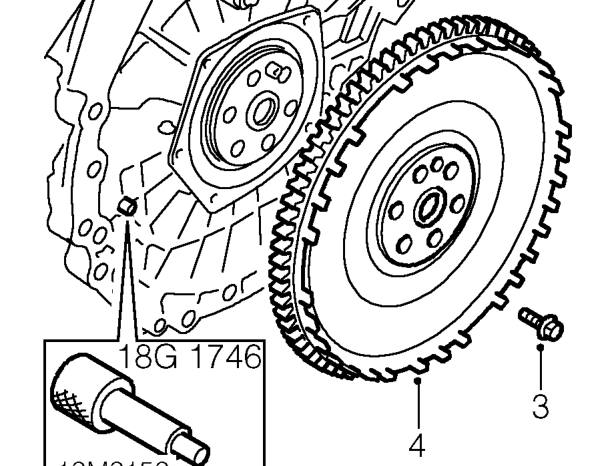

Converter drive plate – Remove automatic gearbox. See AUTOMATIC GEARBOX - ’JF403E’, Repairs.
  1. Fit flywheel locking tool 18G 1746.
  2. Remove and discard 6 bolts securing drive plate to crankshaft.
  3. Remove drive plate from crankshaft.
