Engine - KV6All models · page 1 of 4

All models

All models

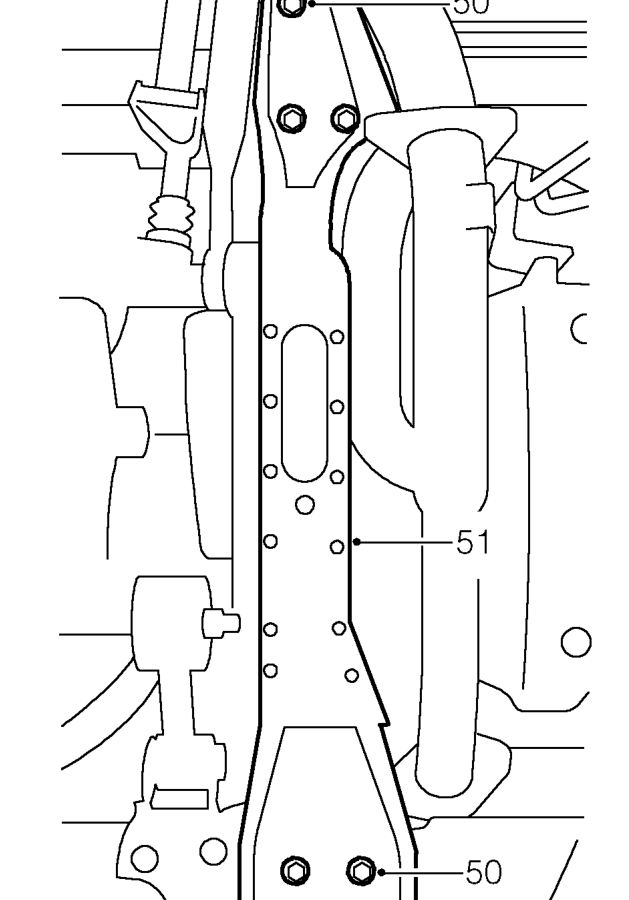

  1. Remove 8 bolts securing centre beam to front and rear crossmembers.
  2. Remove centre beam.
All models – Remove centre beam.

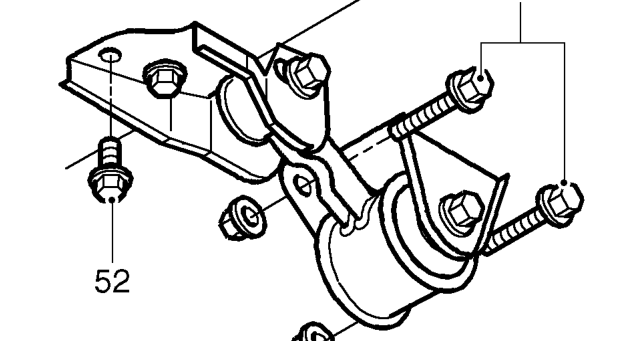

  1. Remove 3 bolts securing front steady bar bracket to front crossmember.
  2. Remove 2 bolts securing steady bar bracket to gearbox.
  3. Remove steady bar and bracket assembly.
All models – Remove steady bar and bracket assembly.

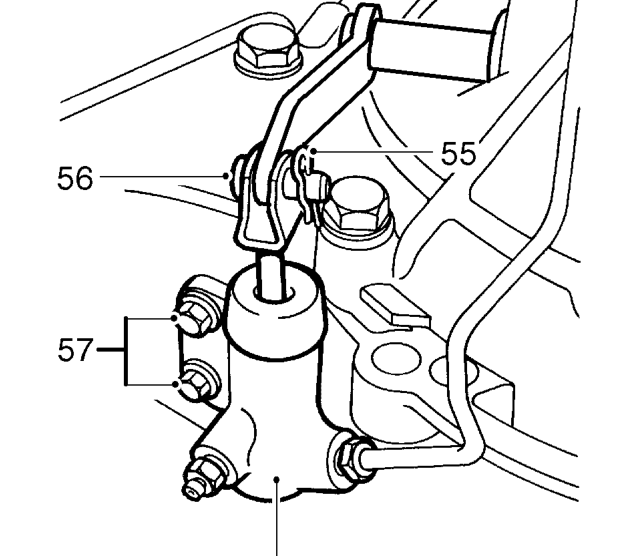

  1. Remove ’R’ clip retaining clutch slave cylinder push rod clevis pin.
  2. Remove washer and clevis pin.
  3. Remove 2 bolts securing slave cylinder to front engine mounting bracket.
  4. Position slave cylinder aside.
