Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

All models (page 3 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6All models · page 3 of 4
Diagram

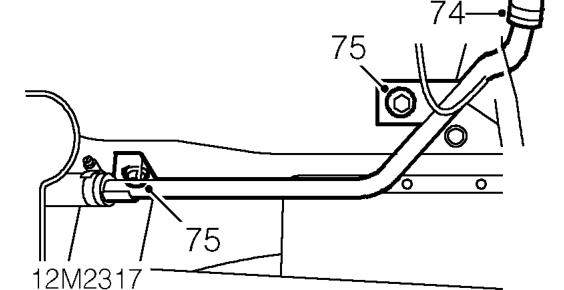

  1. Loosen clip and disconnect expansion tank hose from coolant pipe.
  2. Remove 2 bolts securing coolant pipe to front crossmember.
Remove 2 bolts securing coolant pipe to front crossmember.

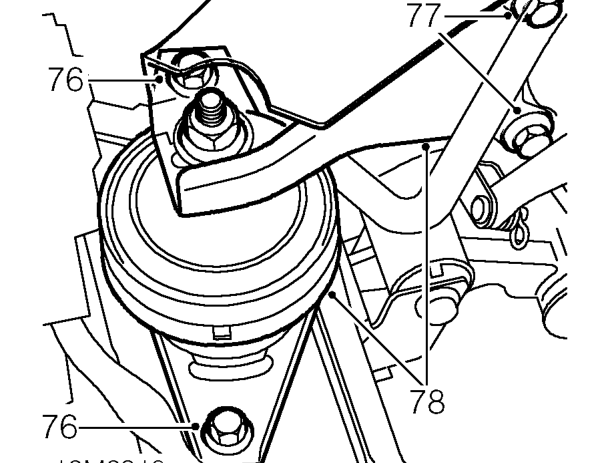

  1. Move coolant pipe aside and remove 2 bolts securing engine front mounting to crossmember.
  2. Remove 2 bolts securing engine front mounting bracket to gearbox.
  3. Release and remove mounting and mounting bracket assembly.
Release and remove mounting and mounting bracket assembly.

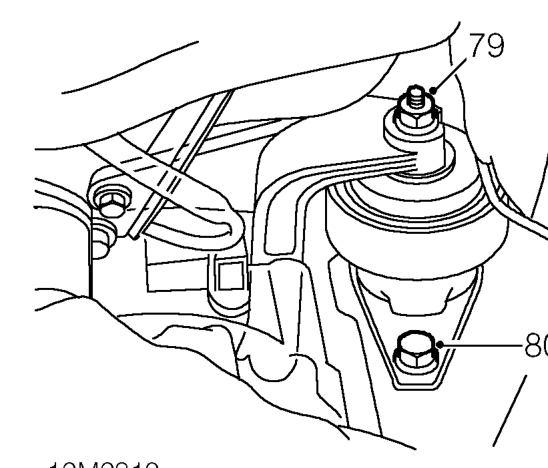

  1. Remove top nut from engine rear mounting.
  2. Loosen 2 bolts securing engine rear mounting to crossmember.
Loosen 2 bolts securing engine rear mounting to crossmember.

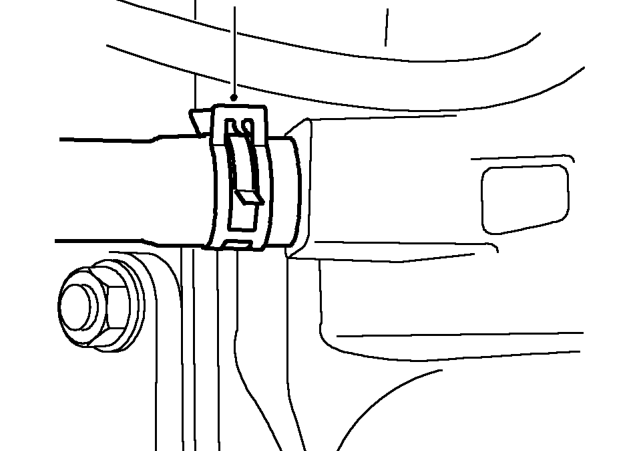

  1. Raise engine, release clip and disconnect heater feed hose from rear of cylinder block.
