Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Timing belt cover - rear LH

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Timing belt cover - rear LH
Engine - KV6Timing belt cover - rear LH

Refit

  1. Fit seal to cover.
  2. Fit cover taking care not to displace seal.
  3. Fit bolts securing cover and tighten to 4 Nm.
  4. Align PAS pipe clip to engine bracket. fit and tighten bolt.
  5. Fit PAS pump pulley and tighten bolts to 9 Nm.
  6. Fit ancillary drive belt. See ELECTRICAL, Repairs.
  7. Connect battery earth lead.

TIMING BELT COVER - REAR LH

Service repair no - 12.65.46

Remove

  1. Disconnect battery earth lead.
Timing belt cover - rear lh – Disconnect battery earth lead.
  1. Release top hose from support clip.

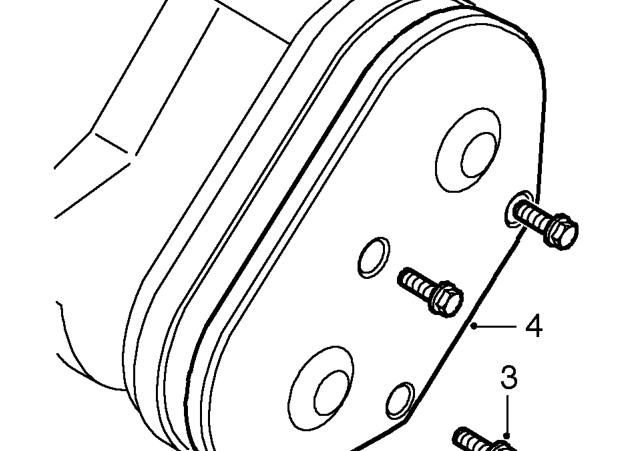

Timing belt cover - rear lh – Release top hose from support clip.
  1. Remove 3 screws securing cover.
  2. Remove LH rear timing belt cover.

Refit

  1. Fit rear cover to back cover.
  2. Fit and and tighten screws to 4 Nm.
  3. Fit top hose into support clip.
  4. Connect battery earth lead.
