Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Camshaft cover gasket - RH

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Camshaft cover gasket - RH
Engine - KV6Camshaft cover gasket - RH

CAMSHAFT COVER GASKET - RH

Service repair no - 12.29.41

Remove

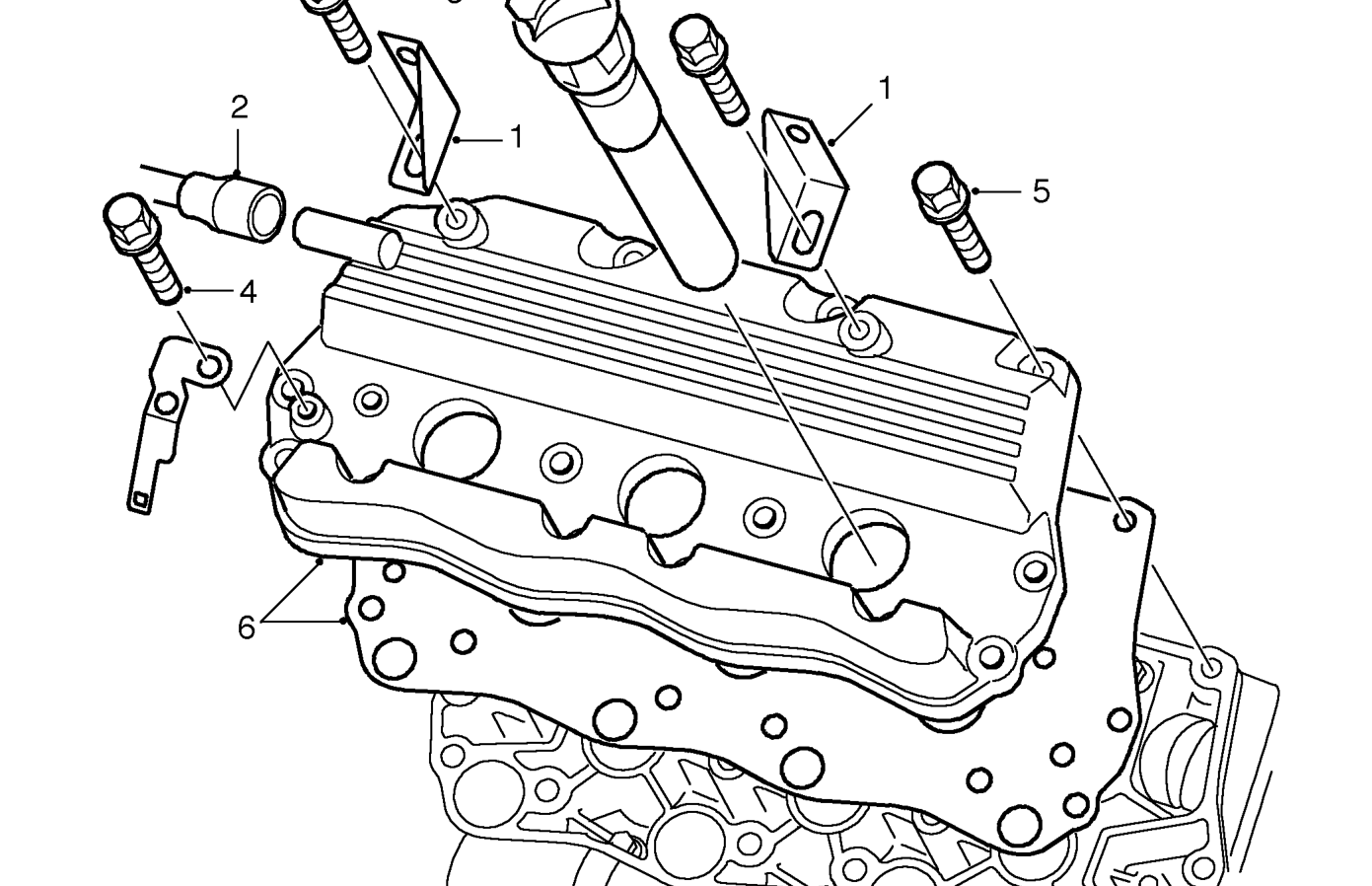

Camshaft cover gasket - rh – Service repair no - 12.29.41
  1. Remove 4 bolts securing manifold chamber support brackets. Remove brackets.
  2. Release breather hose from camshaft cover.
  3. Disconnect h.t. leads from spark plugs.
  4. Remove bolt securing harness bracket to camshaft cover.
  5. Progressively loosen and remove 14 bolts securing camshaft cover.
  6. Remove camshaft cover and gasket.
