Timing belt cover - front RH

TIMING BELT COVER - FRONT RH

Service repair no - 12.65.39

Remove

1. Disconnect battery earth lead.
2. Remove engine acoustic cover, See BODY, Repairs.
3. Position trolley jack under sump to support engine.

CAUTION: Use a block of wood or hard rubber pad to protect sump.

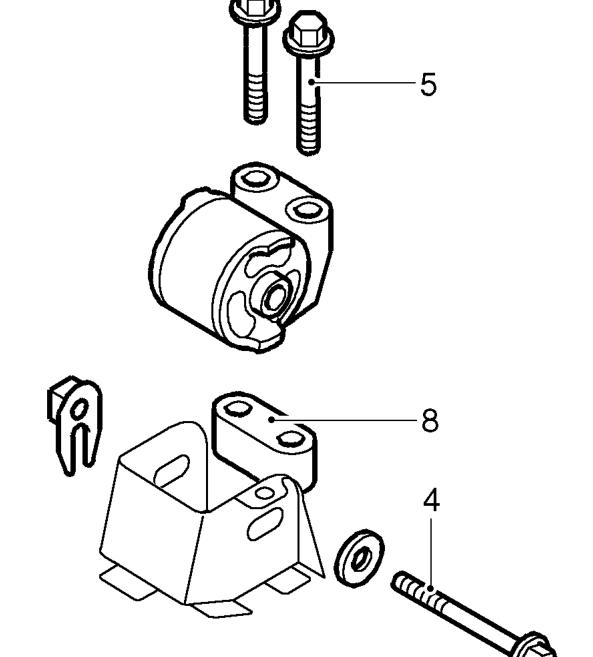

4. Loosen through bolt securing RH engine mounting bracket to body.
5. Remove 2 bolts securing engine mounting bracket to engine.
6. Swivel mounting bracket away from engine and tighten through bolt to hold bracket clear of engine.
7. Raise engine.
8. Release and remove spacer from engine bracket.

NOTE: Dowel located.

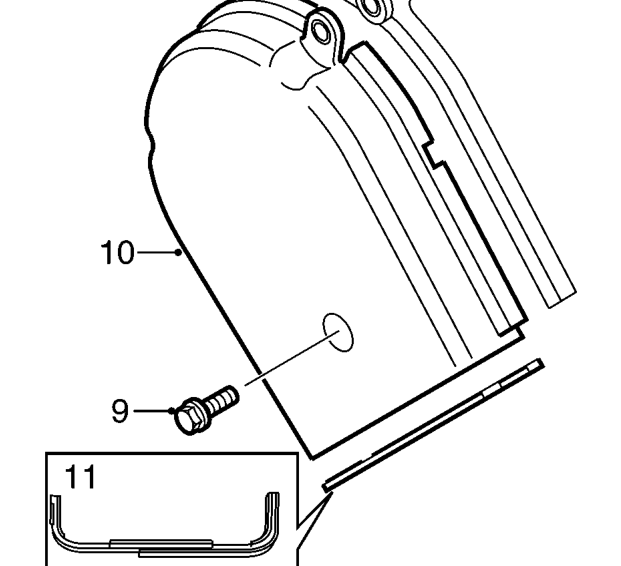

9. Remove 3 bolts securing cover.
10. Remove cover.
11. Remove seal from cover.

Refit

1. Fit seal to cover.
2. Fit cover taking care not to displace seal.
3. Fit bolts securing cover and tighten to 4 Nm.
4. Clean spacer and mating face on engine bracket.
5. Fit spacer.
6. Loosen engine mounting bracket through bolt and swivel bracket over.
7. Lower engine and align engine mounting bracket.
8. Fit engine mounting bracket bolts and tighten to 75 Nm.
9. Tighten through bolt to 45 Nm.
10. Fit engine acoustic cover, See BODY, Repairs.
11. Connect battery earth lead.
