Timing belt cover - rear RH

TIMING BELT COVER - REAR RH

Service repair no - 12.65.47

Remove

1. Disconnect battery earth lead.
2. Remove inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
3. Remove rear steady bar from engine. See this section.

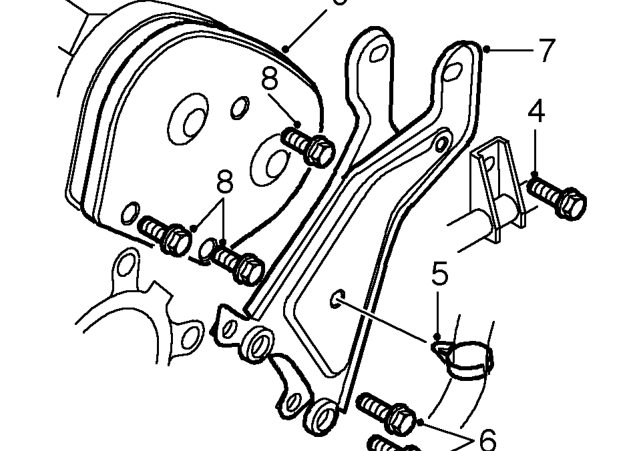

4. Remove bolt securing coolant pipe bracket to steady bar mounting bracket. Position coolant pipe aside.
5. Release harness clip from steady bar bracket.
6. Remove 2 bolts securing steady bar bracket to bell housing.
7. Manoeuvre steady bar bracket(s) from housing and remove.

NOTE: On models fitted with automatic gearbox the steady bar bracket is in two pieces.

8. Remove 3 screws securing cover.
9. Remove RH rear timing belt cover.

Refit

1. Fit RH rear timing belt cover to back cover and tighten screws to 4 Nm.
2. Fit steady bar bracket(s) and tighten bolts to 85 Nm.
3. Fit harness clip to steady bar bracket.
4. Position coolant pipe bracket to steady bar and tighten bolt.
5. Fit rear steady bar to engine. See this section.
6. Fit inlet manifold chamber. See MANIFOLD & EXHAUST SYSTEMS, Repairs.
7. Connect battery earth lead.
