Oil temperature sensor

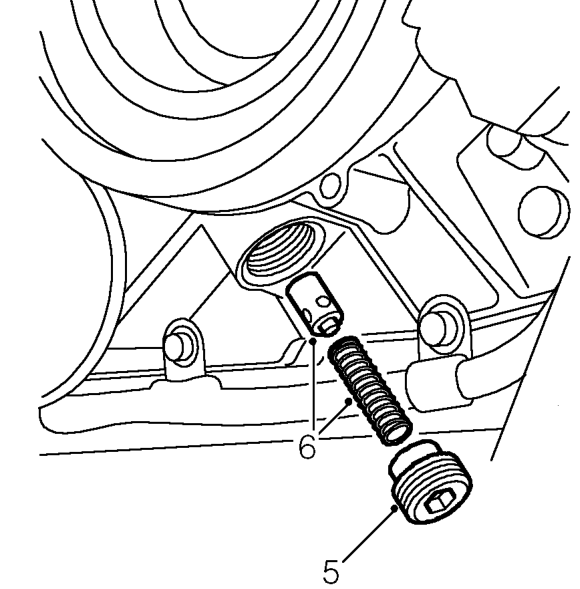

5. Remove plug nut.
6. Remove spring and valve.

Refit

1. Clean valve, spring and nut.
2. Clean valve seating inside oil pump.
3. Lubricate valve and seating with clean engine oil.
4. Fit valve and spring to pump.
5. Apply Loctite 542 sealant to nut thread.
6. Fit plug nut and tighten to 25 Nm.
7. Fit splash shield to inner wing, fit spacer to forward screw and tighten screws to 9 Nm.
8. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
9. Remove stand(s) and lower vehicle.
10. Top-up engine oil.

OIL TEMPERATURE SENSOR

Service repair no - 12.60.65

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

3. Turn wheel onto RH lock

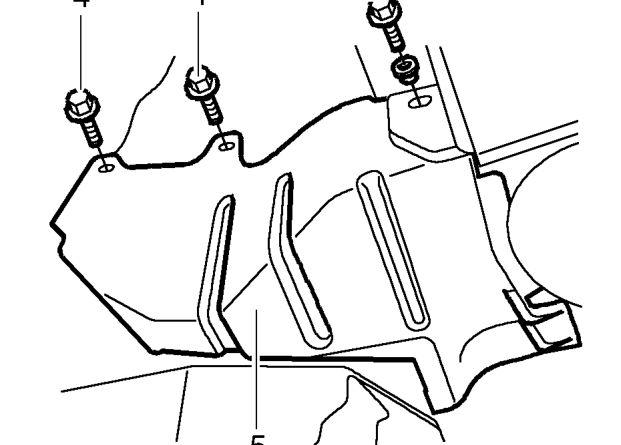

4. Remove 3 bolts securing RH splash shield to inner wing and collect spacer from forward bolt
5. Remove splash shield.
6. Position container below engine oil filter to collect spillage.
