TIMING BELT COVER - FRONT LH

Service repair no - 12.65.41

Remove

  1. Disconnect battery earth lead.
  2. Remove engine acoustic cover, See BODY, Repairs.
Timing belt cover - front lh – Remove engine acoustic cover, See BODY, Repairs.

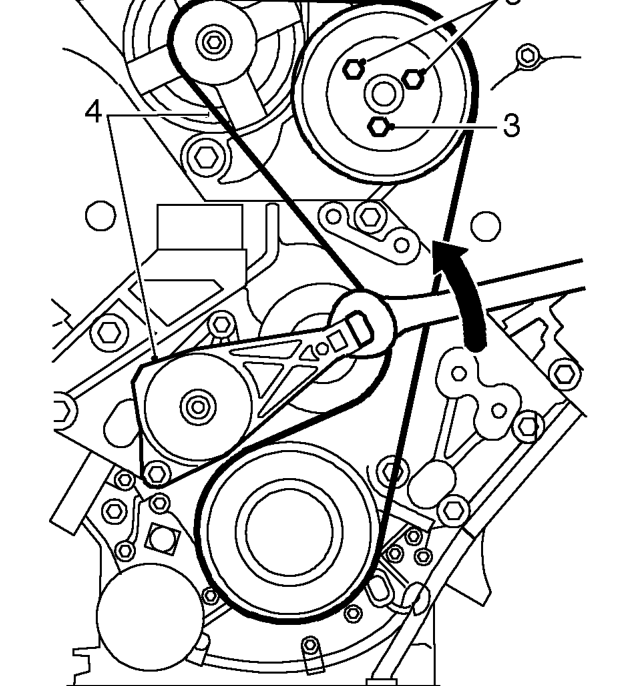

  1. Loosen 3 bolts securing PAS pump pulley.
  2. Using a 25 mm spanner, raise ancillary drive belt tensioner and release drive belt from alternator and PAS pump pulleys.
Timing belt cover - front lh – Using a 25 mm spanner, raise ancillary drive belt tensioner and release drive belt from al

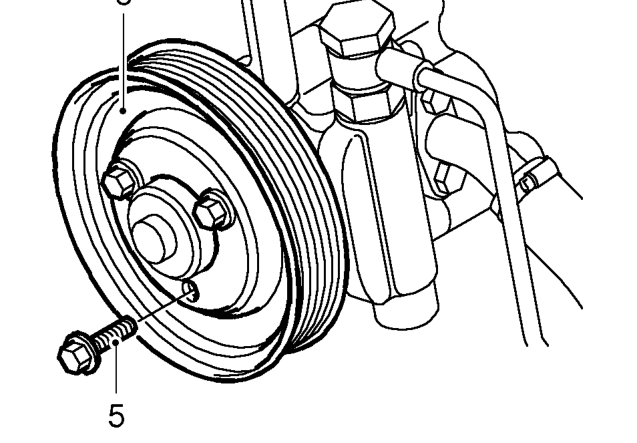

  1. Remove bolts securing PAS pump pulley.
  2. Remove pulley.
Timing belt cover - front lh – Remove pulley.

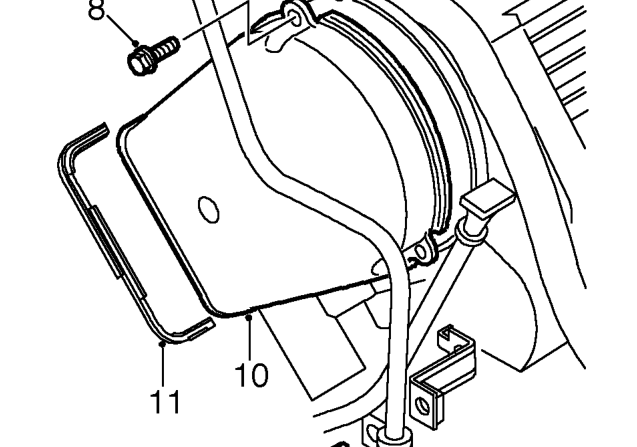

  1. Remove bolt securing PAS pipe clip to engine bracket.
  2. Remove 3 bolts securing timing belt cover.
  3. Ease PAS pipe away from engine.
  4. Release and remove cover.
  5. Remove seal from cover.
