Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Oil pressure relief valve

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Oil pressure relief valve
Engine - KV6Oil pressure relief valve
Diagram

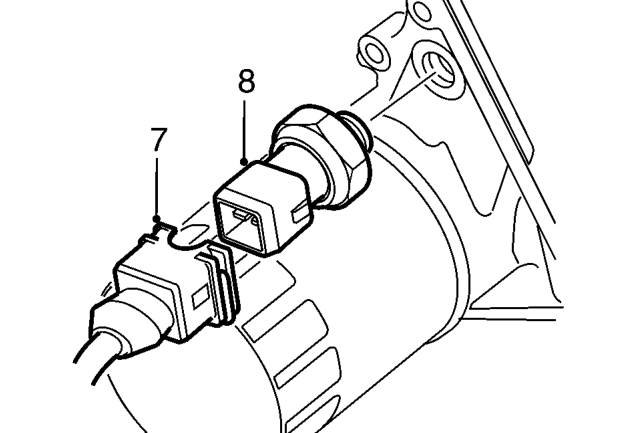

  1. Disconnect multiplug from oil pressure switch.
  2. Remove oil pressure switch.

Refit

  1. Clean oil pressure switch threads.
  2. Fit oil pressure switch and tighten to 14 Nm.
  3. Connect multiplug to oil pressure switch.
  4. Fit splash shield to inner wing, fit spacer to forward screw and tighten screws to 9 Nm.
  5. Remove stand(s) and lower vehicle.
  6. Top-up engine oil. See Adjustments.
  7. Connect battery earth lead.

OIL PRESSURE RELIEF VALVE

Service repair no - 12.60.56

Remove

  1. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH front road wheel.
Oil pressure relief valve – Remove RH front road wheel.

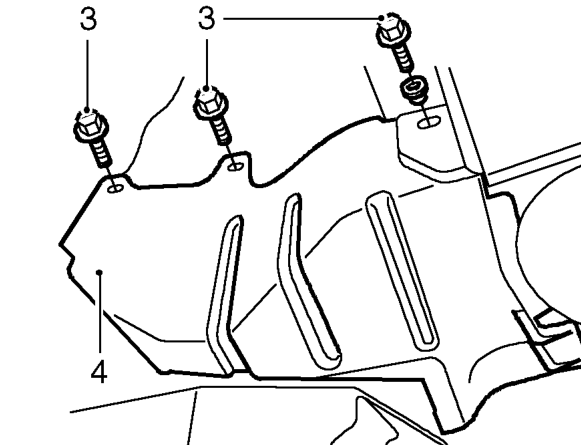

  1. Remove 3 screws securing RH splash shield to inner wing and collect spacer from forward screw.
  2. Remove splash shield.
