Engine steady bar - front

Refit

1. Position mounting on rear cross-member, with location peg to the rear, fit LH screw and then RH screw from above and tighten to 45 Nm.
2. Engage engine mounting and fit mounting bracket, tighten bolts to 85 Nm.
3. Remove jack support from gearbox.
4. Fit locknut securing mounting to bracket, tighten to 85 Nm.
5. Remove stand(s) and lower vehicle.
6. Connect battery earth lead.

ENGINE STEADY BAR - FRONT

Service repair no - 12.45.21

Remove

1. Disconnect battery earth lead.
2. Raise front of vehicle.

WARNING: Support on safety stands.

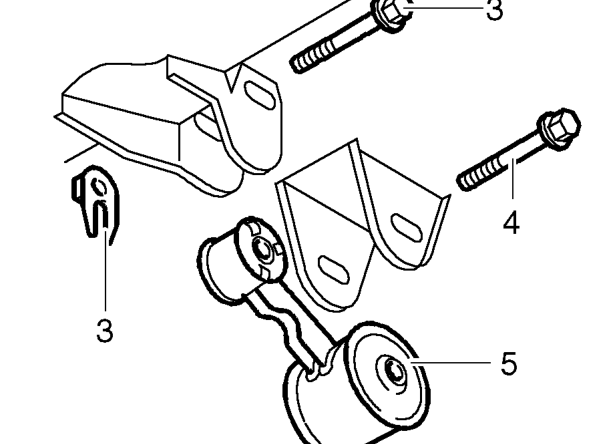

3. Remove bolt securing steady bar to body bracket and collect special nut.
4. Remove bolt securing steady bar to engine bracket.
5. Remove steady bar from brackets.

Refit

1. Fit steady bar to brackets, cut out facing downwards.
2. Fit bolt securing steady bar to engine bracket, finger tight.
3. Fit bolt securing steady bar to body bracket, locate nut fork in bracket peg, finger tight.
4. Tighten bolts to 85 Nm.
