CAMSHAFT REAR TIMING BELT - LH BANK

Service repair no - 12.65.56

Remove

  1. Disconnect battery earth lead.
  2. Remove air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
  3. Remove LH rear timing belt cover. See this section.
  4. Raise front of vehicle.

WARNING: Support on safety stands.

  1. Remove RH road wheel.
Camshaft rear timing belt - lh bank – Remove RH road wheel.

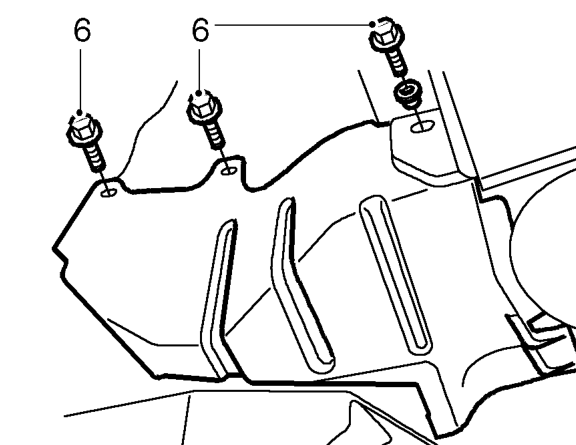

  1. Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove splash shield.
Camshaft rear timing belt - lh bank – Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove splash shie

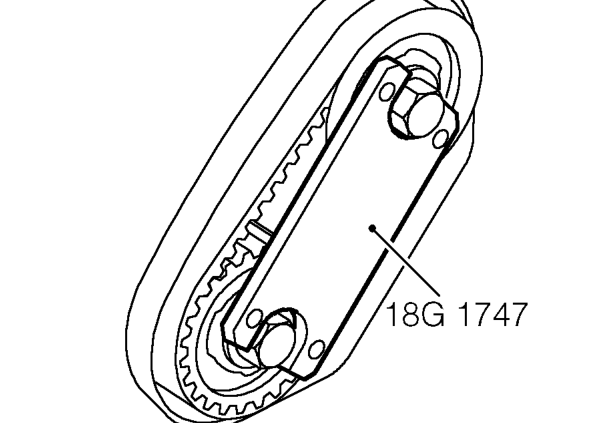

  1. Rotate crankshaft in a clockwise direction and fit tool 18G 1747 to LH rear timing gears.

CAUTION: Use hand pressure only when fitting tool 18G 1747 to timing gears. Tool 18G 1747 must be fitted when loosening or tightening camshaft gear retaining bolts otherwise damage to camshafts may occur.
