Camshaft rear timing belt - LH bank (page 3 of 3)

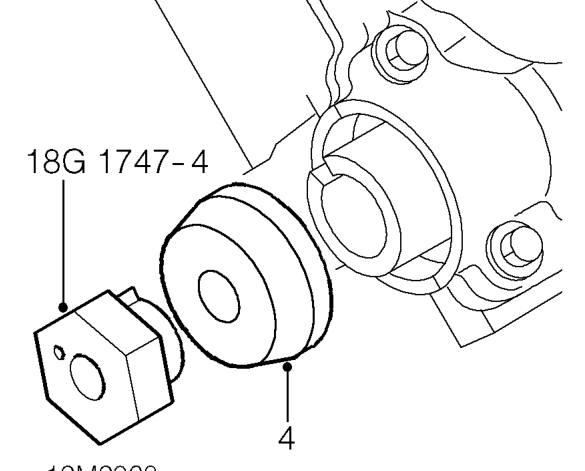

4. Remove LH exhaust camshaft front oil seal and discard .
5. Fit tool 18G 1747-4 to front end of LH exhaust camshaft.

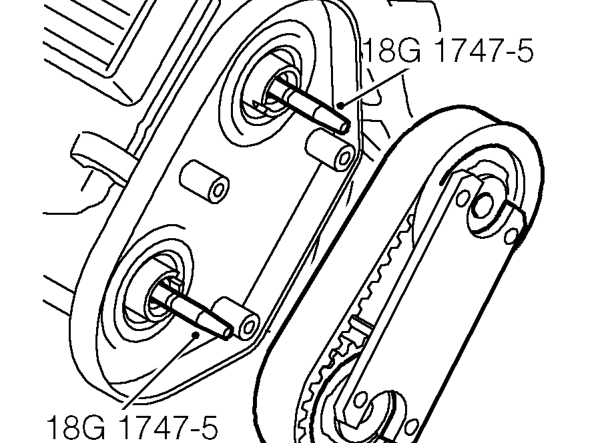

6. Fit alignment pins 18G 1747-5 to rear ends of camshafts.
7. Position camshaft rear drive gear assembly and with assistance carefully align exhaust camshaft to rear drive gear by rotating 18G 1747-4 and fit gear assembly.

CAUTION: When gears are fitted, timing belt guide plate on inlet camshaft drive gear should face outwards.

8. Remove alignment pins 18G 1747-5 from camshafts.
9. Fit camshaft gear retaining bolts and tighten to 25 Nm plus a further 90°.
10. Remove tool 18G 1747 from rear timing gears.
11. Remove tool 18G 1747-1 from gears.
12. Remove tool 18G 1747-4 from exhaust camshaft.
13. Fit LH rear timing belt cover. See this section.
14. Clean exhaust camshaft oil seal recess and fit new seal.
15. Fit splash shield, fit spacer to front bolt and tighten bolts.
16. Fit road wheel(s) and tighten nuts to correct torque. See INFORMATION, Torque wrench settings.
17. Remove stand(s) and lower vehicle.
18. Fit air cleaner. See ENGINE MANAGEMENT SYSTEM - MEMS, Repairs.
19. Connect battery earth lead.
