Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Air conditioning

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs › Air conditioning
Engine - KV6Air conditioning · page 1 of 3

Air conditioning

Air conditioning

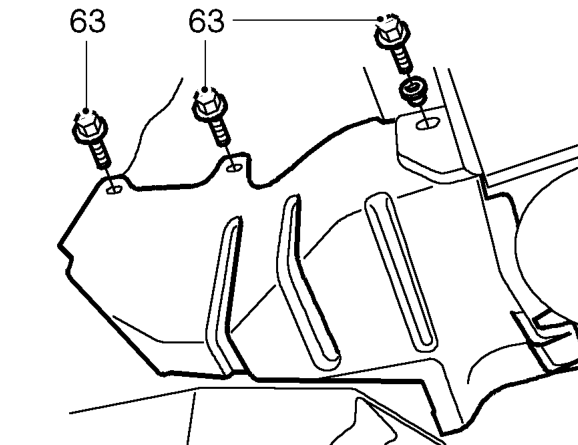

  1. Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove shield.
Air conditioning – Remove 3 bolts securing RH under wing splash shield. Collect spacer and remove shield.

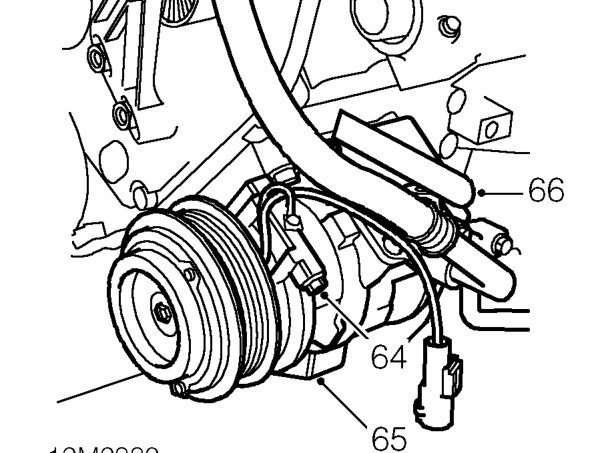

  1. Remove 4 bolts securing compressor to mounting bracket.
  2. Release compressor and lay aside.
  3. Remove compressor heatshield.

All models

All models – Remove compressor heatshield.

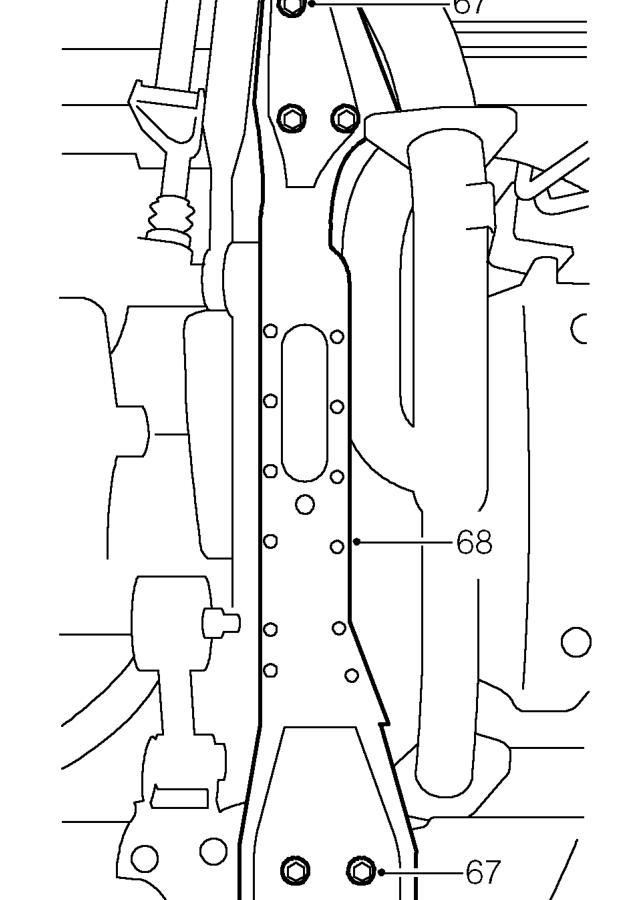

  1. Remove 8 bolts securing centre beam to front and rear cross-members.
  2. Remove centre beam.
