Engine - KV6Air conditioning · page 2 of 3
Diagram

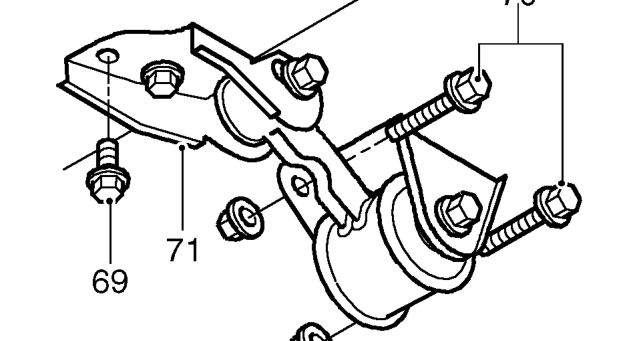

  1. Remove 3 bolts securing front steady bar bracket to front crossmember.
  2. Remove 2 bolts securing steady bar bracket to gearbox.
  3. Remove steady bar and bracket assembly.
Remove steady bar and bracket assembly.

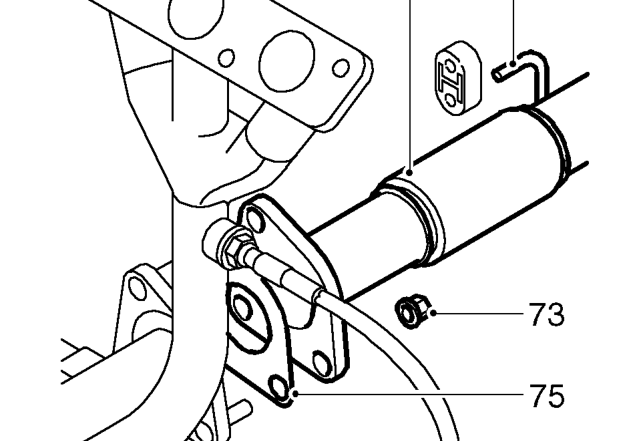

  1. Release mounting rubber from exhaust front pipe.
  2. Remove 3 nuts securing exhaust front pipe to manifold.
  3. Release front pipe from manifold.
  4. Remove and discard gasket.
  5. Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.
Remove LH and RH drive shafts. See DRIVE SHAFTS, Repairs.

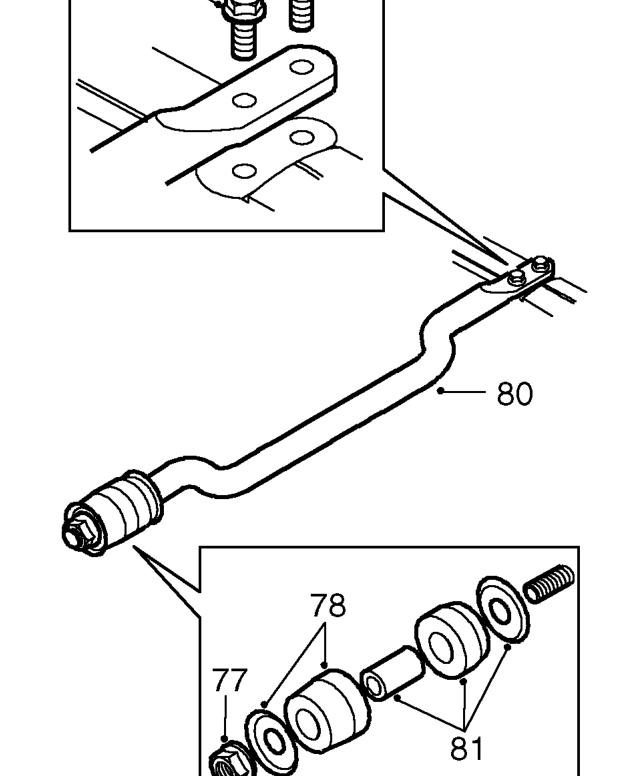

  1. Remove nut securing LH tie rod to front crossmember.
  2. Remove dished washer and bush
  3. Remove 2 bolts securing LH tie rod to lower arm.
  4. Remove tie rod.
  5. Remove spacer, bush and dished washer from tie rod.
