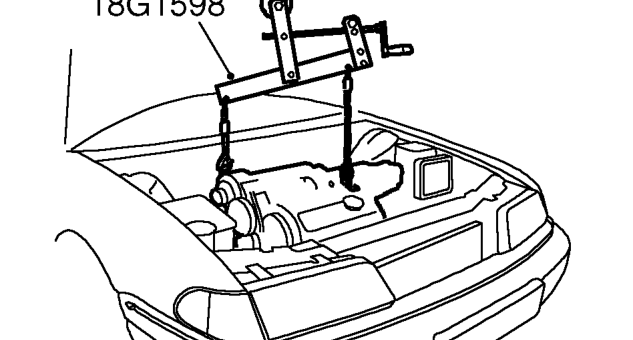

82. Use a hoist and connect adjustable lifting bracket 18G 1598 to engine.
83. Raise hoist to take weight of engine without exerting load on mountings.

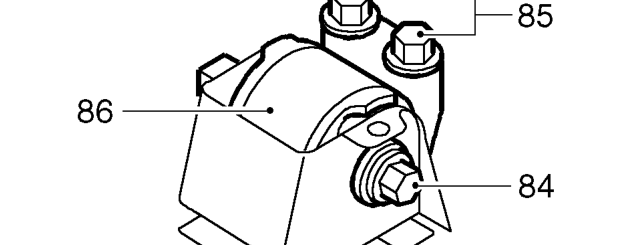

84. Loosen through bolt securing engine RH mounting bracket to body.
85. Remove 2 bolts securing engine mounting bracket to engine.
86. Swivel mounting bracket away from engine and tighten through bolt to hold bracket clear of engine.

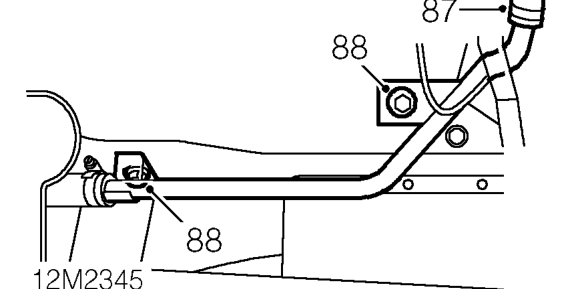

87. Loosen clip and disconnect expansion tank hose from coolant pipe.
88. Remove 2 bolts securing coolant pipe to front crossmember.

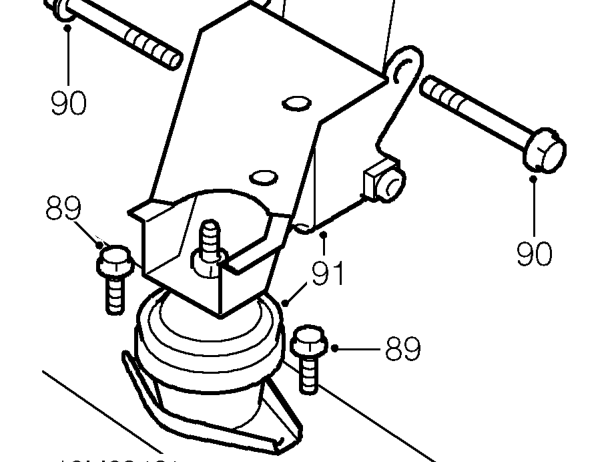

89. Move coolant pipe aside and remove 2 bolts securing engine front mounting to crossmember.
90. Remove 2 bolts securing engine front mounting bracket to gearbox.
91. Release and remove mounting and mounting bracket assembly.

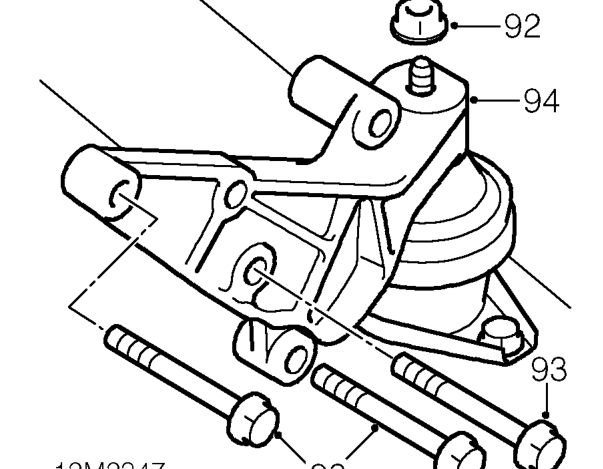

92. Remove top nut from engine rear mounting.
93. Remove 3 bolts securing engine rear mounting bracket to engine.
94. Remove bracket.
