Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

All models (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6All models · page 2 of 4
Diagram

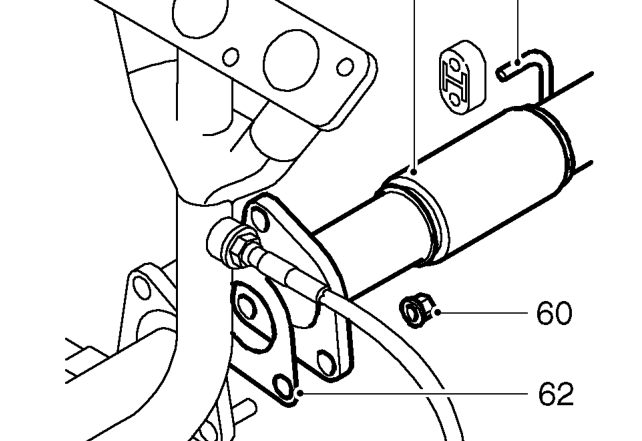

  1. Release exhaust front pipe from mounting.
  2. Remove 3 nuts securing exhaust front pipe to manifold.
  3. Release front pipe from manifold.
  4. Remove and discard gasket.
Remove and discard gasket.

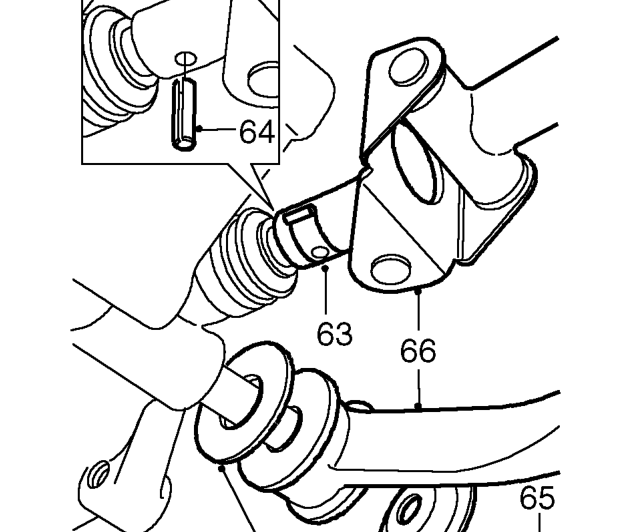

  1. Remove selector rod roll pin cover.
  2. Remove selector rod roll pin.
  3. Remove selector steady rod bolt.
  4. Release steady rod and selector rod from gearbox.
  5. Collect 2 steady rod washers.
  6. Remove LH and RH drive shaft assemblies. See DRIVE SHAFTS, Repairs.
Remove LH and RH drive shaft assemblies. See DRIVE SHAFTS, Repairs.

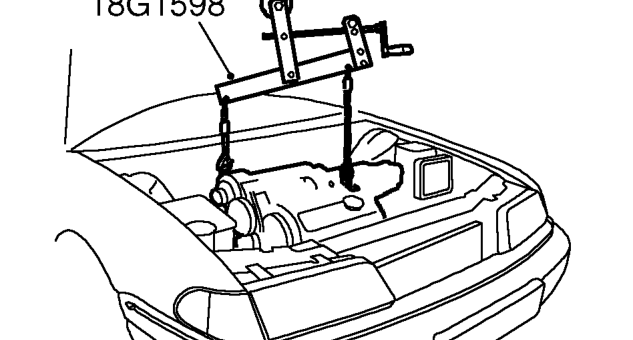

  1. Use a hoist and connect adjustable lifting bracket 18G 1598 to engine.
  2. Raise hoist to take weight of engine without exerting load on mountings.
Raise hoist to take weight of engine without exerting load on mountings.

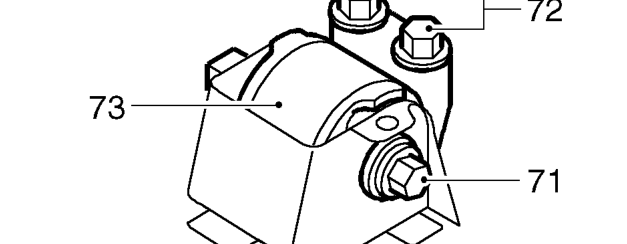

  1. Loosen through bolt securing engine RH mounting bracket to body.
  2. Remove 2 bolts securing engine mounting bracket to engine.
  3. Swivel mounting bracket away from engine and tighten through bolt to hold bracket clear of engine.
