Camshaft timing belt - air conditioning (page 2 of 6)
- Make
- Rover
- Model
- 800 Workshop Manual
- Year
- 1996–1999
- Section
- Repairs
Engine - KV6Camshaft timing belt - air conditioning · page 2 of 6

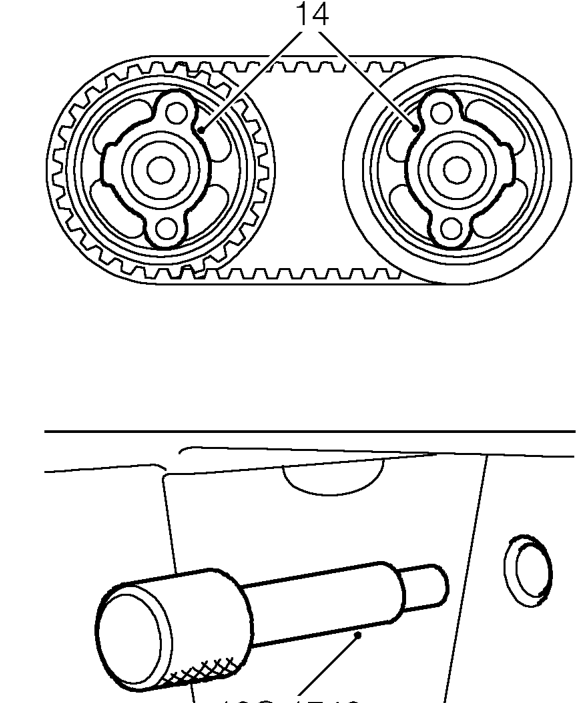

- Set engine in the ’safe’ position by rotating crankshaft in a clockwise direction until rear camshaft gear hubs on LH bank of cylinders are positioned as shown and inserting tool 18G 1746 through hole, located in lower crankcase under LH bank of cylinders, to lock crankshaft.
- Remove LH front timing belt cover. See this section.
- Remove alternator. See ELECTRICAL, Repairs.

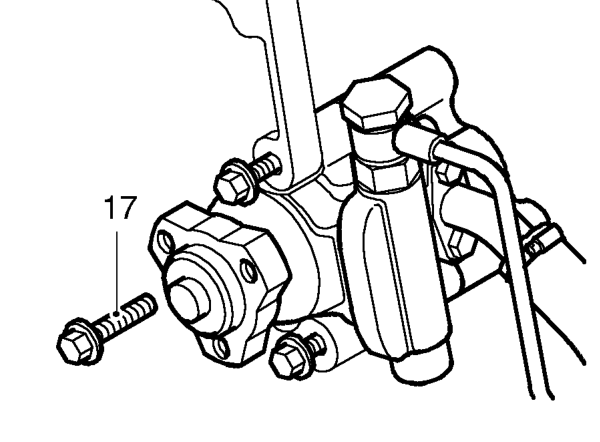

- Remove 3 bolts securing PAS pump and move pump aside.
