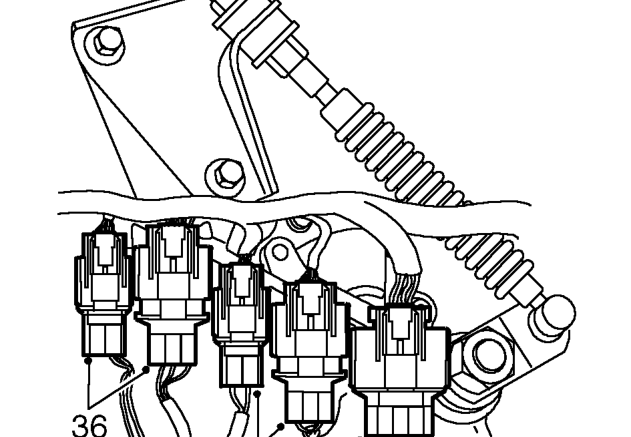

36. Release 5 multiplugs from selector cable bracket.

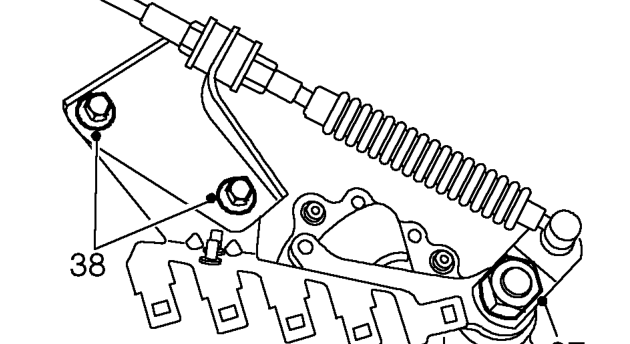

37. Remove nut securing selector lever to selector shaft and release lever from shaft.
38. Remove 2 bolts securing selector cable bracket to gearbox. Move bracket clear of gearbox.

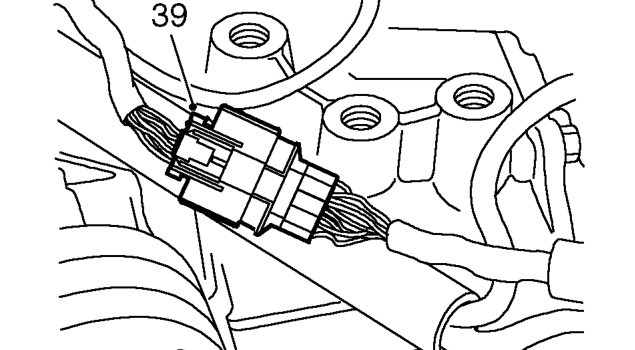

39. Disconnect engine harness multiplug on LH side of engine.

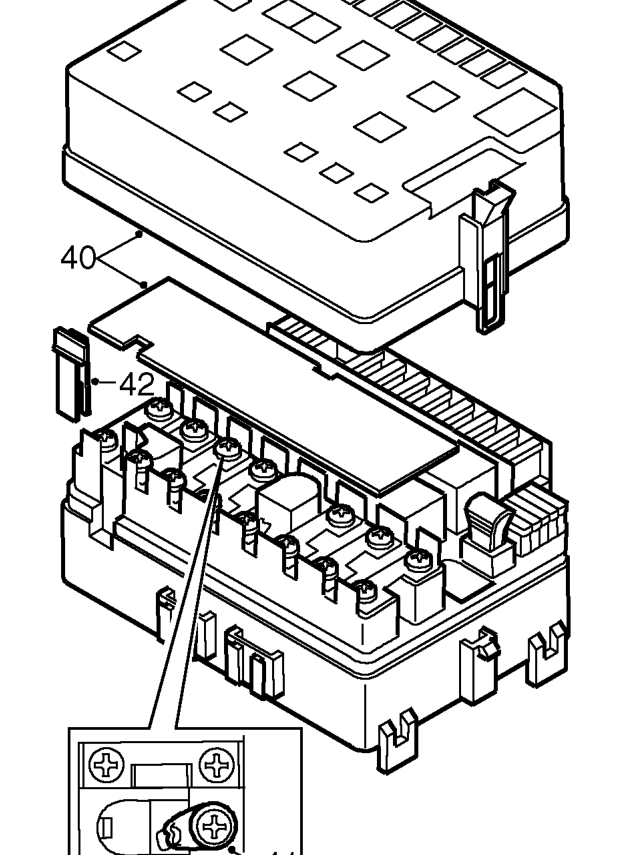

40. Remove fuse box cover and main fuse cover.
41. Remove Torx screw securing fuse box main battery feed lead terminal.
42. Remove lead access panel from fuse box and release lead from fuse box.
43. Remove battery positive lead terminal bolt and release fuse box main feed lead.
