Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and automatic gearbox (page 2 of 6)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and automatic gearbox · page 2 of 6
Diagram

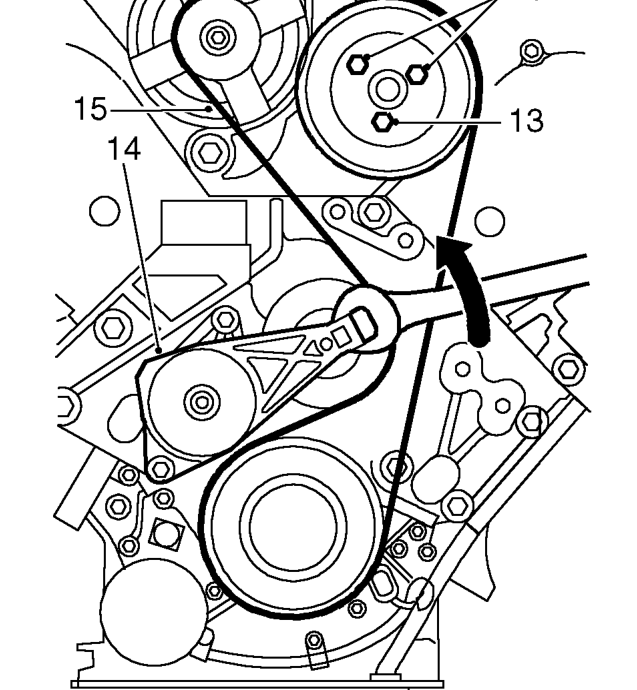

  1. Loosen 3 bolts securing PAS pump pulley.
  2. Using a 25 mm spanner, raise drive belt tensioner and release drive belt from alternator and PAS pump pulleys.
  3. Remove drive belt.

NOTE: On models with air conditioning drive belt remains captive.

Remove drive belt.

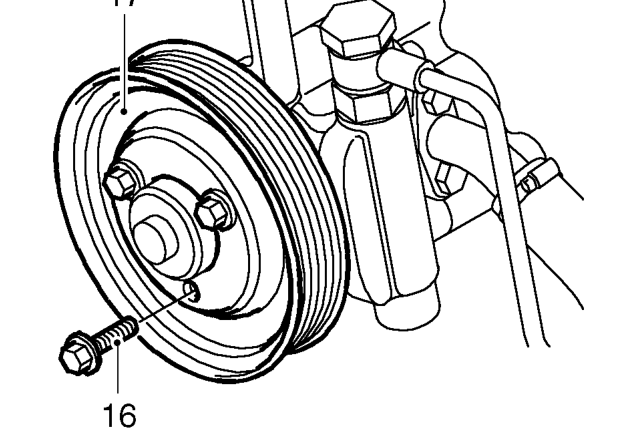

  1. Remove bolts securing PAS pump pulley.
  2. Remove pulley.
Remove pulley.

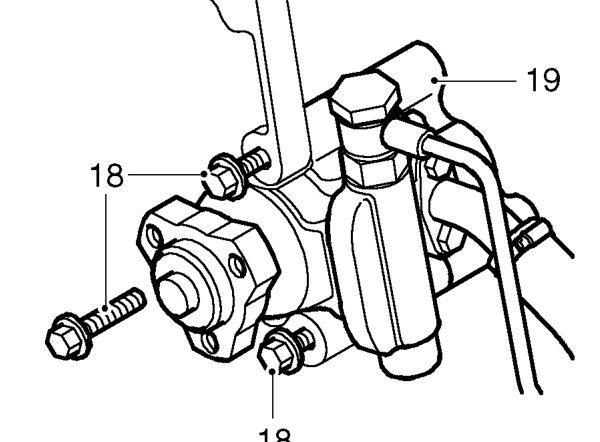

  1. Remove 3 bolts securing PAS pump.
  2. Release and move PAS pump aside.
Release and move PAS pump aside.

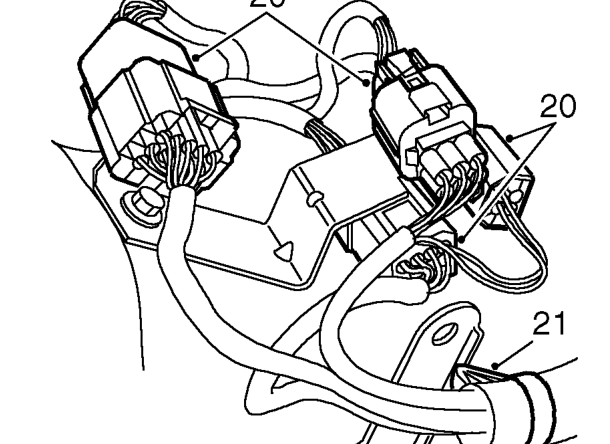

  1. Release 4 engine harness multiplugs from bracket on RH inner wing. Disconnect multiplugs.
  2. Release harness clip from bracket.
