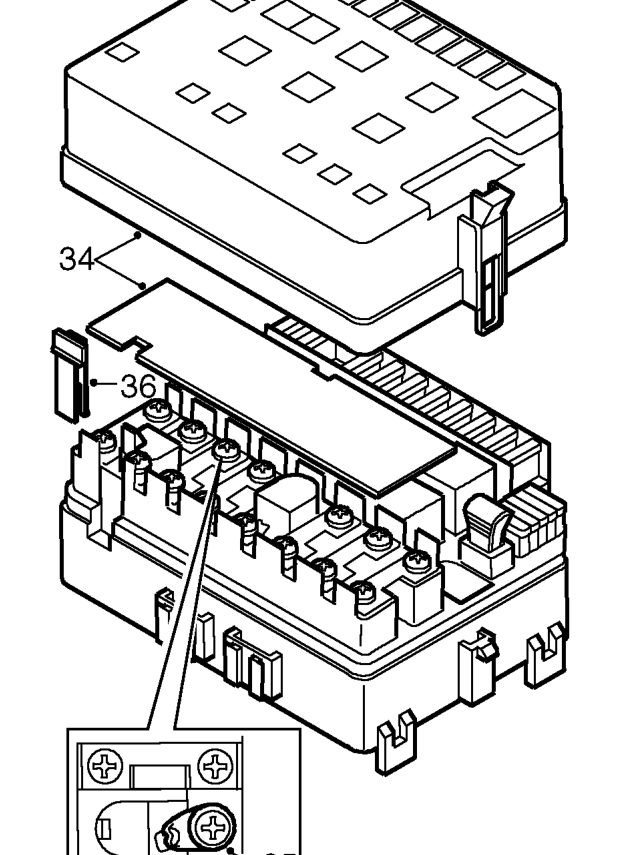

34. Remove fuse box cover and main fuse cover.
35. Remove Torx screw securing fuse box main battery feed lead terminal.
36. Remove lead access panel from fuse box and release lead from fuse box.
37. Remove battery positive lead terminal bolt and release fuse box main feed lead.

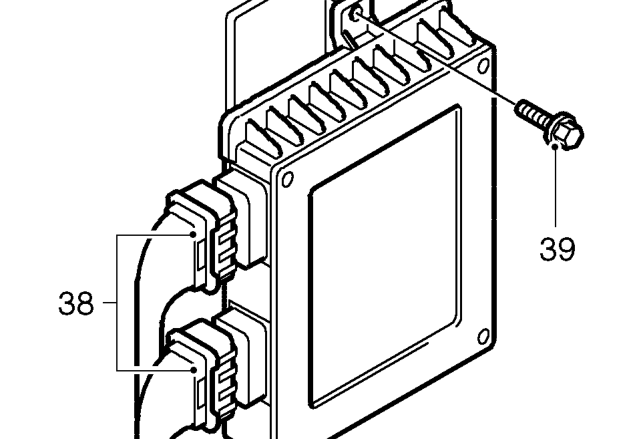

38. Disconnect 2 multiplugs from ECM.
39. Remove bolt securing ECM and remove ECM.

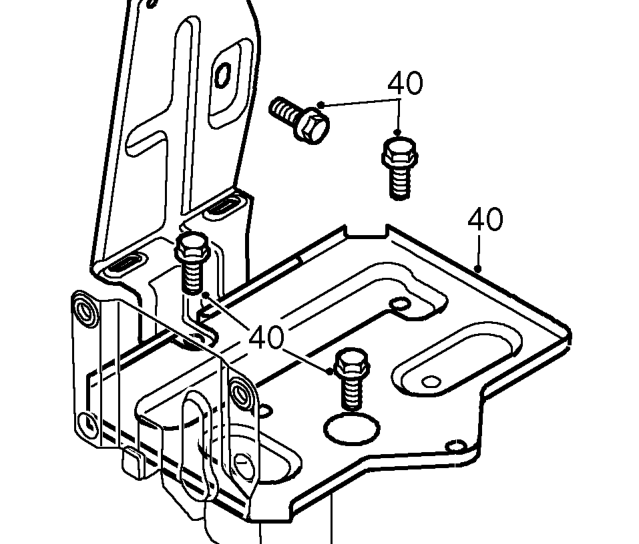

40. Remove 4 bolts securing battery tray and remove battery tray.
