Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and manual gearbox (page 3 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and manual gearbox · page 3 of 5
Diagram

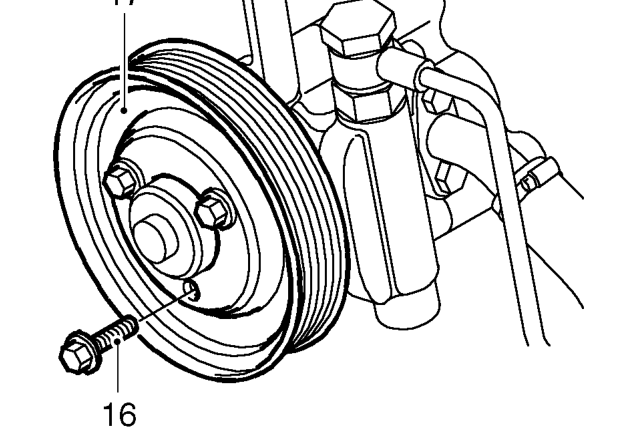

  1. Remove 3 bolts securing PAS pump pulley.
  2. Remove pulley.
Remove pulley.

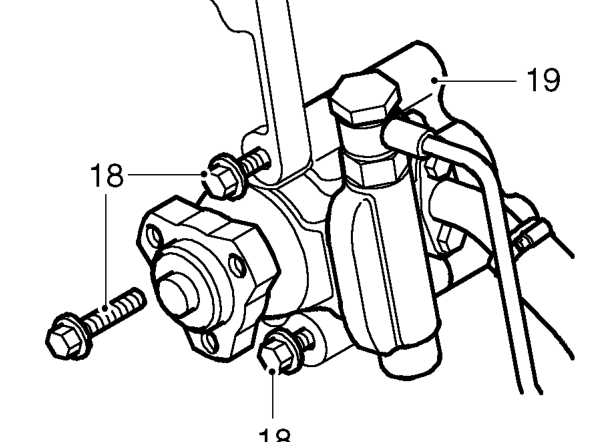

  1. Remove 3 bolts securing PAS pump.
  2. Release and move PAS pump aside.
Release and move PAS pump aside.

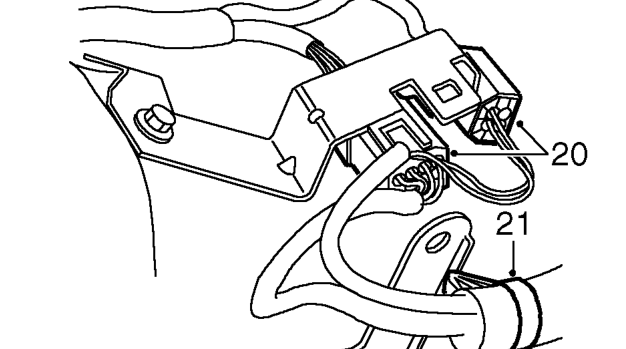

  1. Release 2 engine harness multiplugs from bracket on RH inner wing. Disconnect multiplugs.
  2. Release harness clip from bracket.
Release harness clip from bracket.

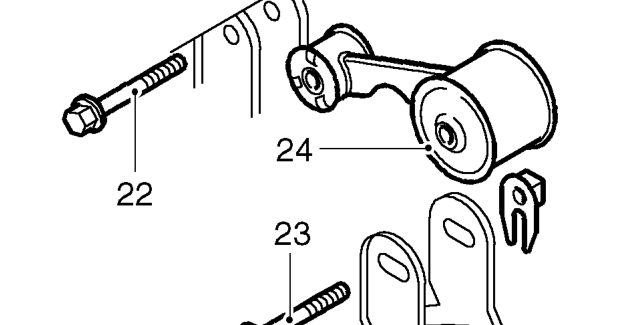

  1. Remove bolt securing rear steady bar to body bracket
  2. Remove bolt securing steady bar to engine bracket and collect special nut.
  3. Remove steady bar.
