Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Engine and manual gearbox (page 2 of 5)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Engine and manual gearbox · page 2 of 5
Diagram

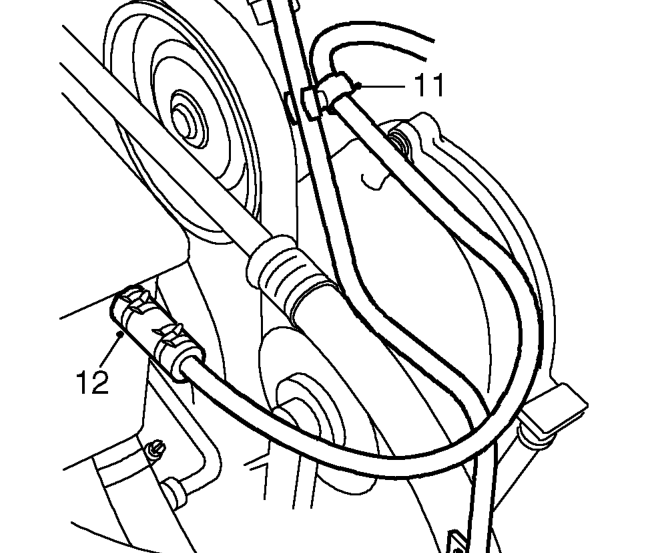

  1. Remove bolt securing PAS pipe to engine bracket.
  2. Release coolant hose from clip on PAS pipe.
  3. Release clip and disconnect hose from expansion tank.
Release clip and disconnect hose from expansion tank.

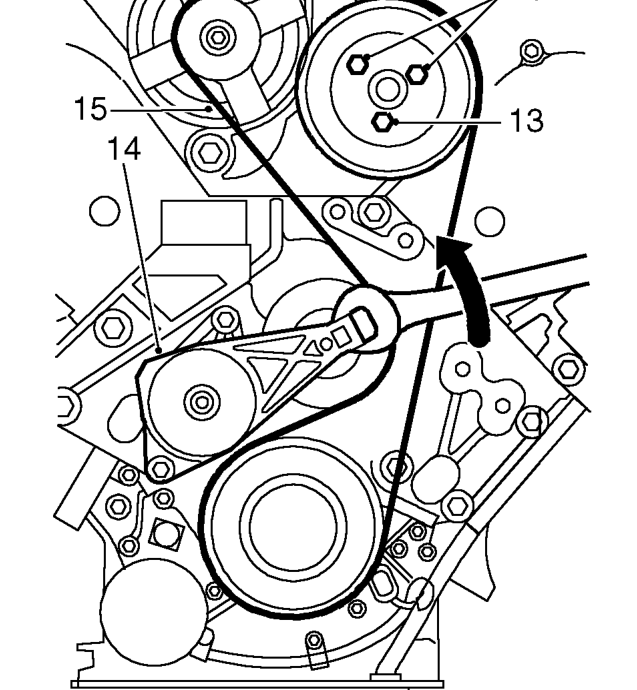

  1. Loosen 3 bolts securing PAS pump pulley.
  2. Using a 25 mm spanner, raise drive belt tensioner and release drive belt from alternator and PAS pump pulleys.
  3. Remove drive belt.

NOTE: On models with air conditioning drive belt remains captive.
