Engine - KV6Engine and manual gearbox · page 4 of 5
Diagram

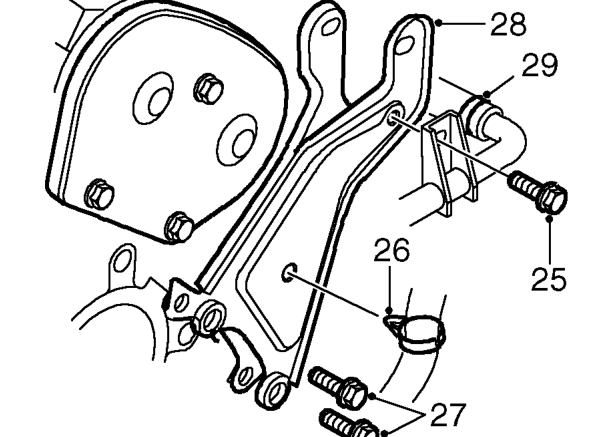

  1. Remove bolt securing coolant pipe to steady bar bracket.
  2. Release harness clip from steady bar bracket.
  3. Remove 2 bolts securing steady bar bracket to gearbox.
  4. Remove steady bar bracket.
  5. Slacken clip securing heater return hose to pipe and disconnect hose.
  6. Position cloth to absorb fuel spillage.
Position cloth to absorb fuel spillage.

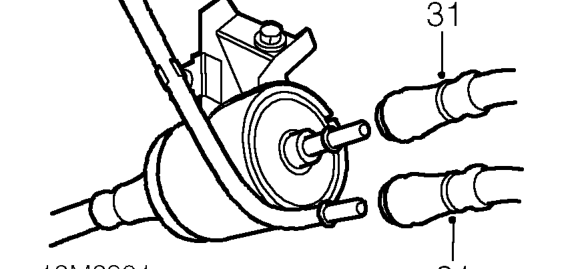

  1. Disconnect fuel feed and return hoses.

CAUTION: Plug the connections.

  1. Remove cloth.
Remove cloth.

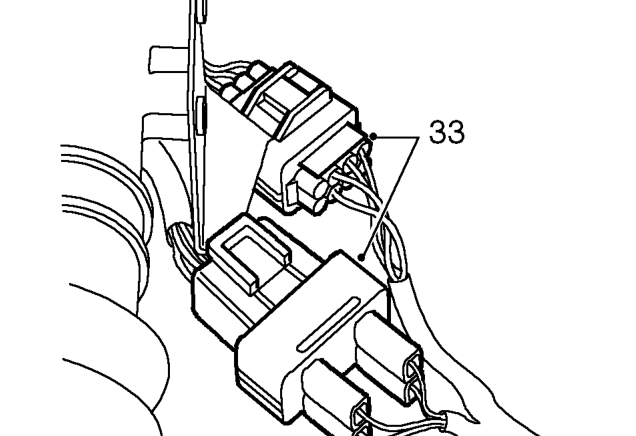

  1. Disconnect 2 engine harness multiplugs.
