Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Cylinder head gasket - LH (page 2 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Cylinder head gasket - LH · page 2 of 4
Diagram

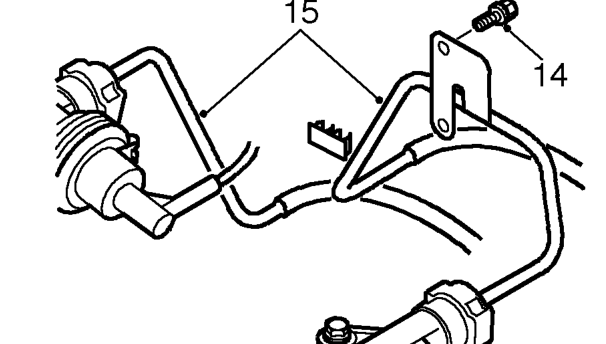

  1. Remove bolt securing fuel return pipe to inlet manifold.
  2. Release fuel feed and return pipes from clips.
Release fuel feed and return pipes from clips.

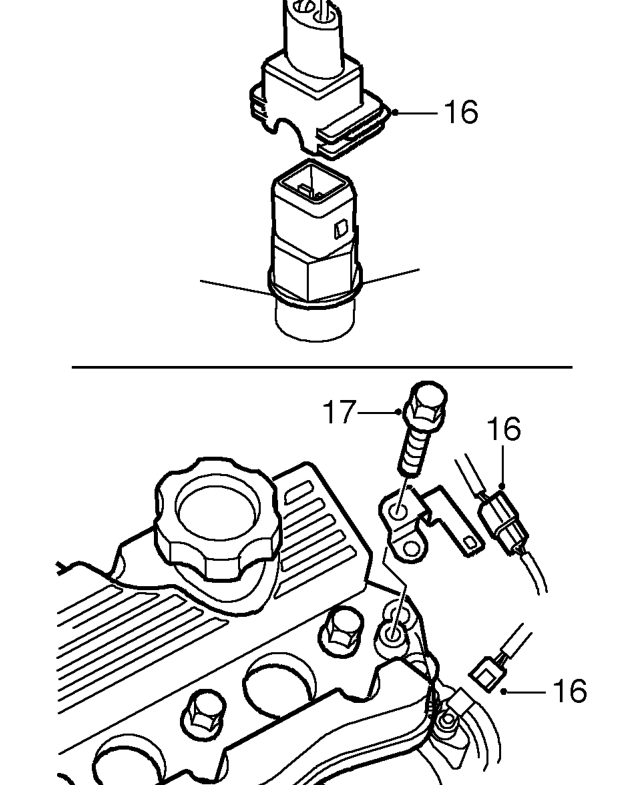

  1. Disconnect oxygen sensor, coolant temperature sensor and camshaft sensor multiplugs.
  2. Remove bolt securing harness bracket to camshaft cover.
Remove bolt securing harness bracket to camshaft cover.

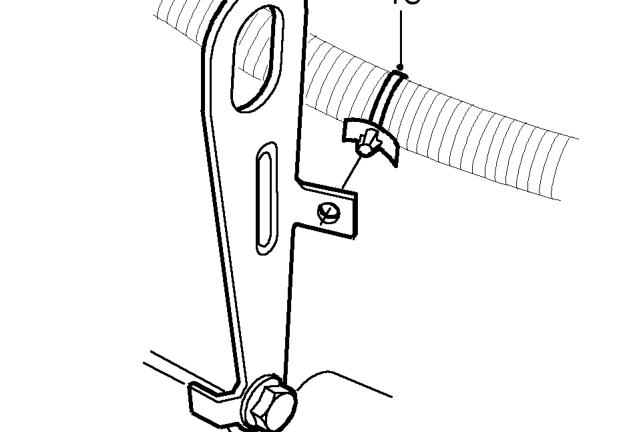

  1. Release harness clip from engine lifting bracket.
Release harness clip from engine lifting bracket.

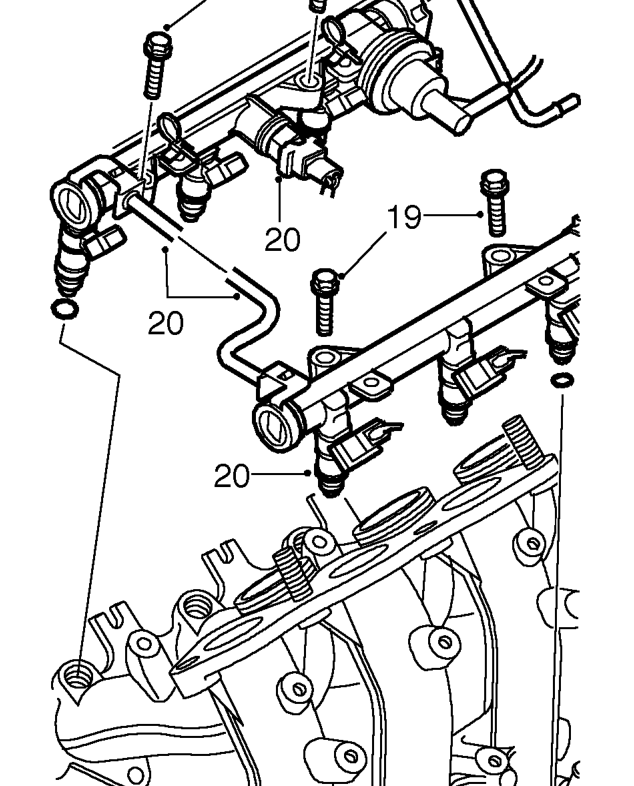

  1. Remove 4 bolts securing fuel rail.
  2. Release injectors from manifolds, disconnect multiplug from intake air temperature sensor and carefully lay fuel rail and injectors aside.
