Rover 800 Workshop Manual (1996-1999)04 · Engine - KV6
04 · Engine

Cylinder head gasket - LH (page 3 of 4)

Make
Rover
Model
800 Workshop Manual
Year
1996–1999
Section
Repairs
Engine - KV6Cylinder head gasket - LH · page 3 of 4
Diagram

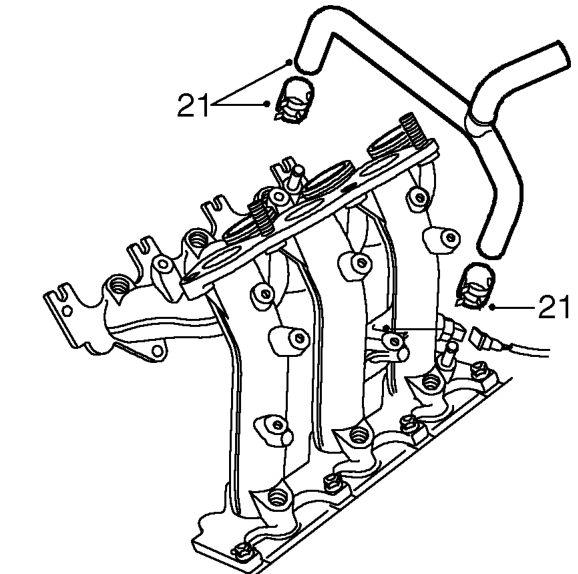

  1. Release clips securing coolant bleed hose to manifolds, release and remove hose.
Release clips securing coolant bleed hose to manifolds, release and remove hose.

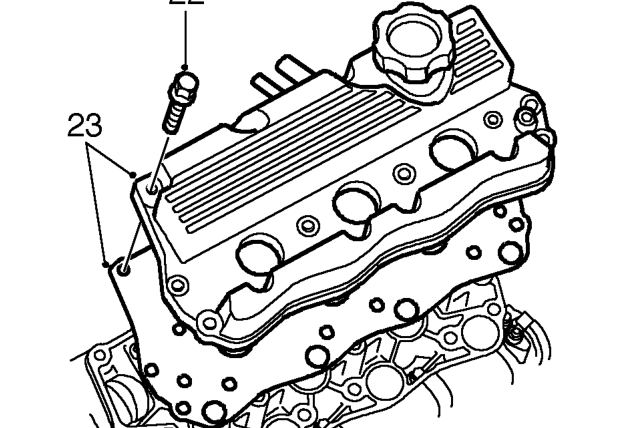

  1. Progressively loosen and remove 14 bolts securing camshaft cover.
  2. Remove camshaft cover and gasket.
Remove camshaft cover and gasket.

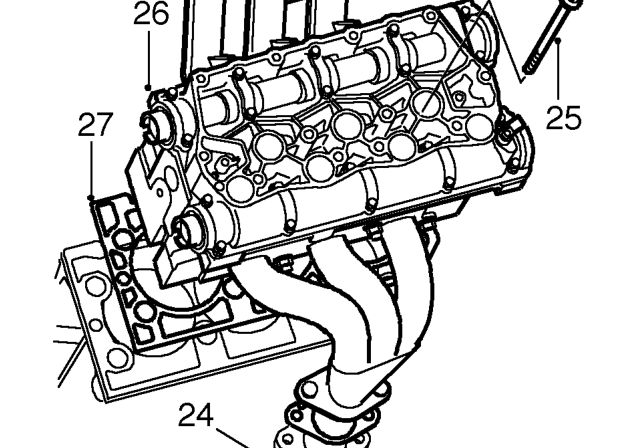

  1. Remove 2 nuts securing front manifold flange to rear manifold flange.
  2. Progressively loosen and remove 8 cylinder head bolts.
  3. Using assistance, remove cylinder head assembly.
  4. Remove and discard cylinder head gasket and exhaust manifold flange gasket.

CAUTION: Do not rotate crankshaft with cylinder head removed. Place cylinder head on blocks of wood to avoid damaging valves.
