CAUTION:
● All SRS electrical wiring harnesses are covered with yellow outer insulation.

  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM

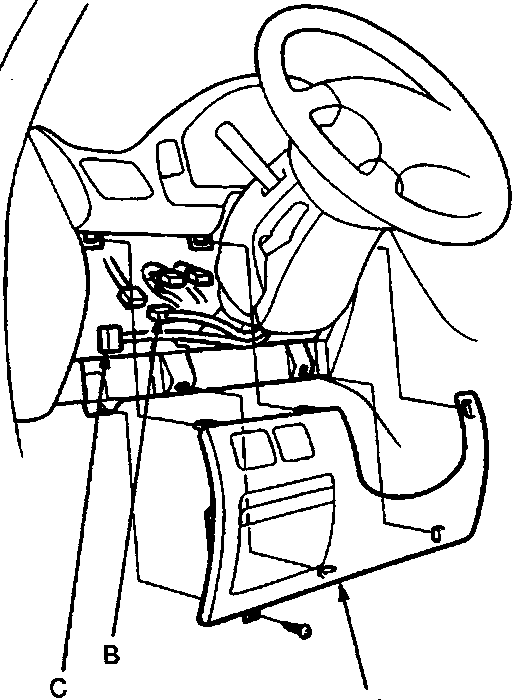

Diagram of dashboard lower cover area showing connectors A, B, and C

86M 1991

  1. A Dashboard lower cover
  2. B 6 – P connector
  3. C 7 – P connector
  4. Remove the dashboard lower cover and driver's side kick panel.
  5. Disconnect the 7 – P connector from the passenger compartment fuse/relay box and the 6 – P connector from the main wire harness.

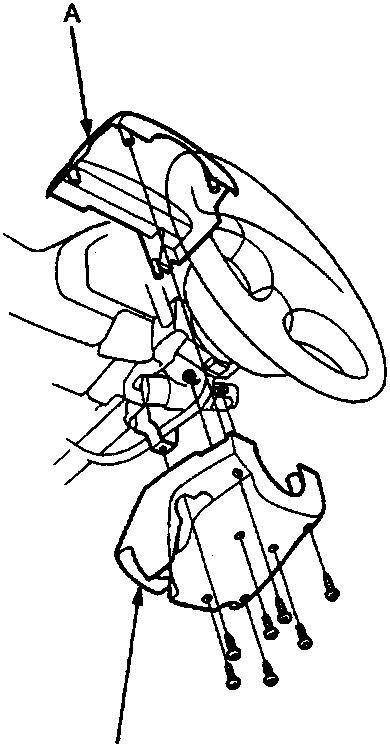

Diagram of steering column covers showing upper cover A and lower cover B

86M 1992

  1. A Upper column cover
  2. B Lower column cover
  1. Remove the steering column covers.

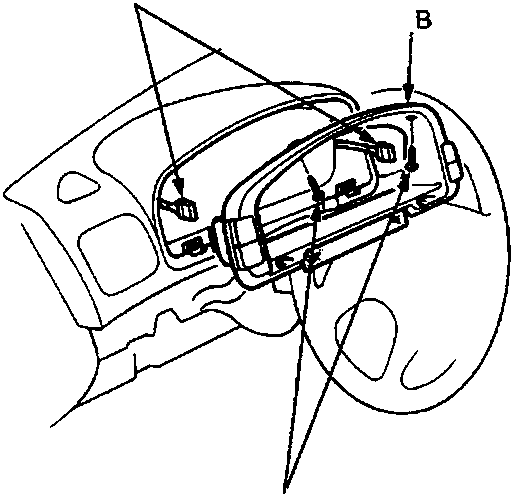

Diagram of instrument panel showing screws C, connector A, and panel B

86M 1993

  1. A 10 – P connector
  2. B Instrument panel
  3. C Screws
  1. Remove the two screws from the instrument panel.
  2. Remove the instrument panel and disconnect the 10 – P connectors from the switches.
