Courtesy Light Test/Replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Courtesy Light Test/Replacement
ElectricalCourtesy Light Test/Replacement

Courtesy Light Test/Replacement

Note: The bulb or lens alone can be replaced without removing the door panel.

  1. Remove the door panel, see BODY

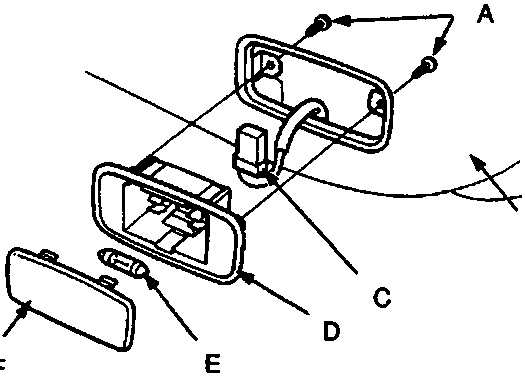

Exploded view of a courtesy light assembly showing screws, door panel, connector, housing, bulb and lens
  1. Screws
  2. Door panel
  3. 2-P connector
  4. Housing
  5. Bulb (5W)
  6. Lens

86M 2183

  1. Remove the two mounting screws and the courtesy light, then disconnect the 2-P connector.

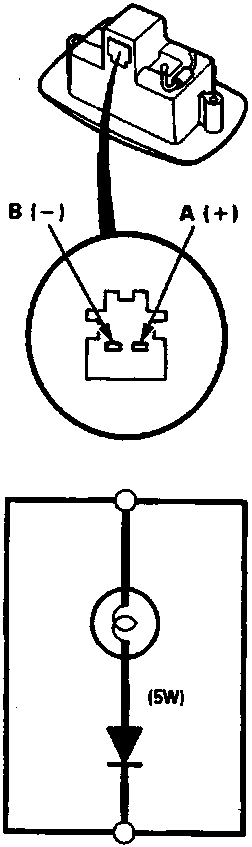

Diagram of a courtesy light socket with terminals A (+) and B (-), connected to a circuit containing a diode and a 5W bulb symbol
  1. From No. 29 (15A) Fuse
  2. To Door Switch

86M 2184

  1. Make sure that bulb is OK, then check for continuity between A (+) and B (-) terminals.

Note: This light has a diode in it. To get an accurate reading, either test it with a Volt/Ohmmeter that compensates for diode, or make sure you connect your test leads to match the polarity shown.

  1. If there is no continuity, replace the courtesy light.
