ElectricalRemoval

Removal

Note: The antenna mast alone can be replaced without removing the power antenna motor.

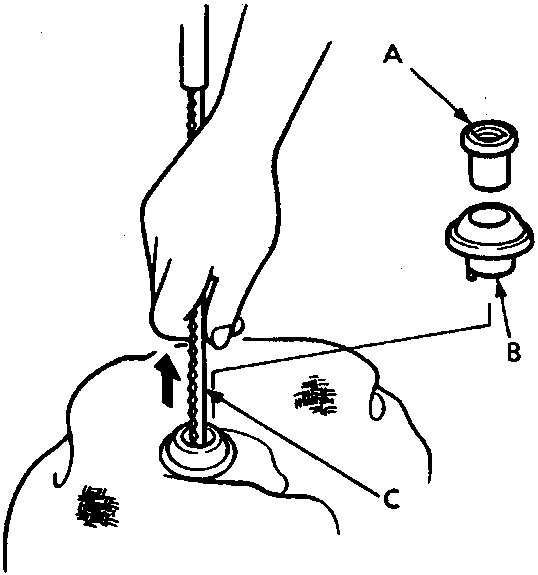

Diagram showing removal of special nut, spacer, and antenna mast drive cable from the roof area
  1. A Special nut
  2. B Spacer
  3. C Antenna mast drive cable
  4. Remove the special nut, spacer, and bushing.
  5. Carefully withdraw the antenna mast while extending it by turning the radio switch ON.

Installation

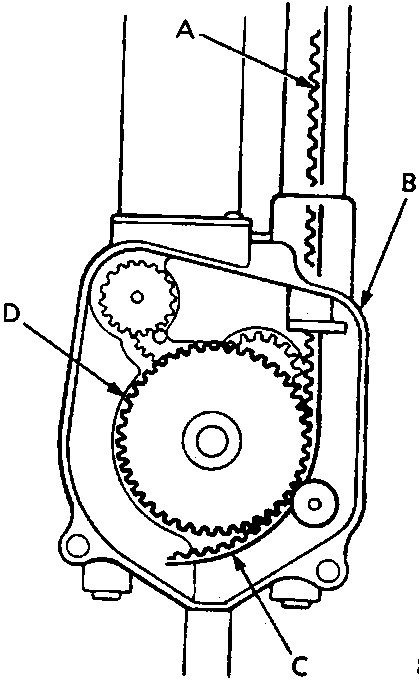

Diagram showing internal components of the power antenna motor including teeth, drive gear, and drive cable
  1. A Teeth
  2. B Power antenna motor
  3. C Antenna mast drive cable
  4. D Drive gear

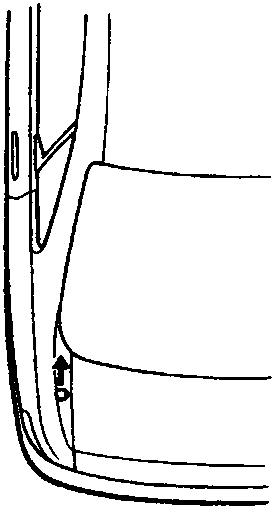

Diagram showing the antenna mast being inserted into the vehicle body panel
  1. Hold the antenna so the teeth on the drive cable face in the direction shown, and insert the drive cable into the antenna housing.
  2. Check for engagement of the cable teeth to the drive gear by carefully moving the cable up and down.
  3. Turn the radio switch "OFF", and let the motor pull the drive cable inside the antenna housing.
