Repairs › Power relays *
ElectricalPower relays * · page 1 of 2

● If the reading drops below 6.5 V, slow charge the battery by connecting a battery and charge at five amps for no more than 24 hours ( or until the indicator shows full charge, or the specific gravity of the electrolyte is at least 1.250). Then test load capacity again.

  • If the voltage stays above 9.6 V, the battery is OK; clean its terminals and case, and reinstall it.
  • If the voltage still drops below 6.5 V, the battery is not good; replace it.

POWER RELAYS *

Relay Test (Normally – open Type)

Note: See the indicator/hazard relay input test, and seat heater relay test.

  1. Remove the power relay from its socket.
  2. Check for continuity between the relay terminals

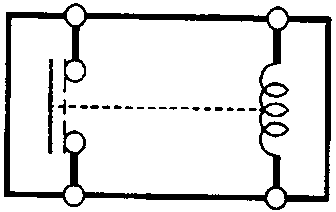

Schematic diagram of a relay showing terminals A, B, C, and D with internal coil and switch contacts

86M 1976

TerminalAB
Power (C – D)
Connected■■
Disconnected

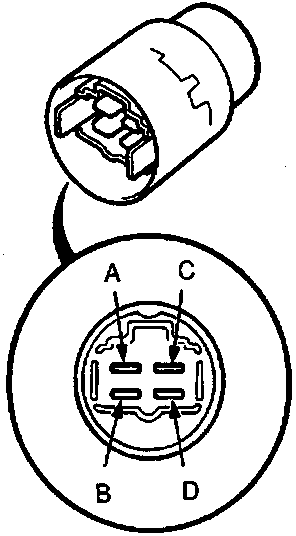

Photograph of a cylindrical power relay and its socket showing terminal positions A, B, C, and D

86M 1977

  • A/C compressor clutch relay
  • Condenser fan relay
