Electrical86M 2208 · page 1 of 3

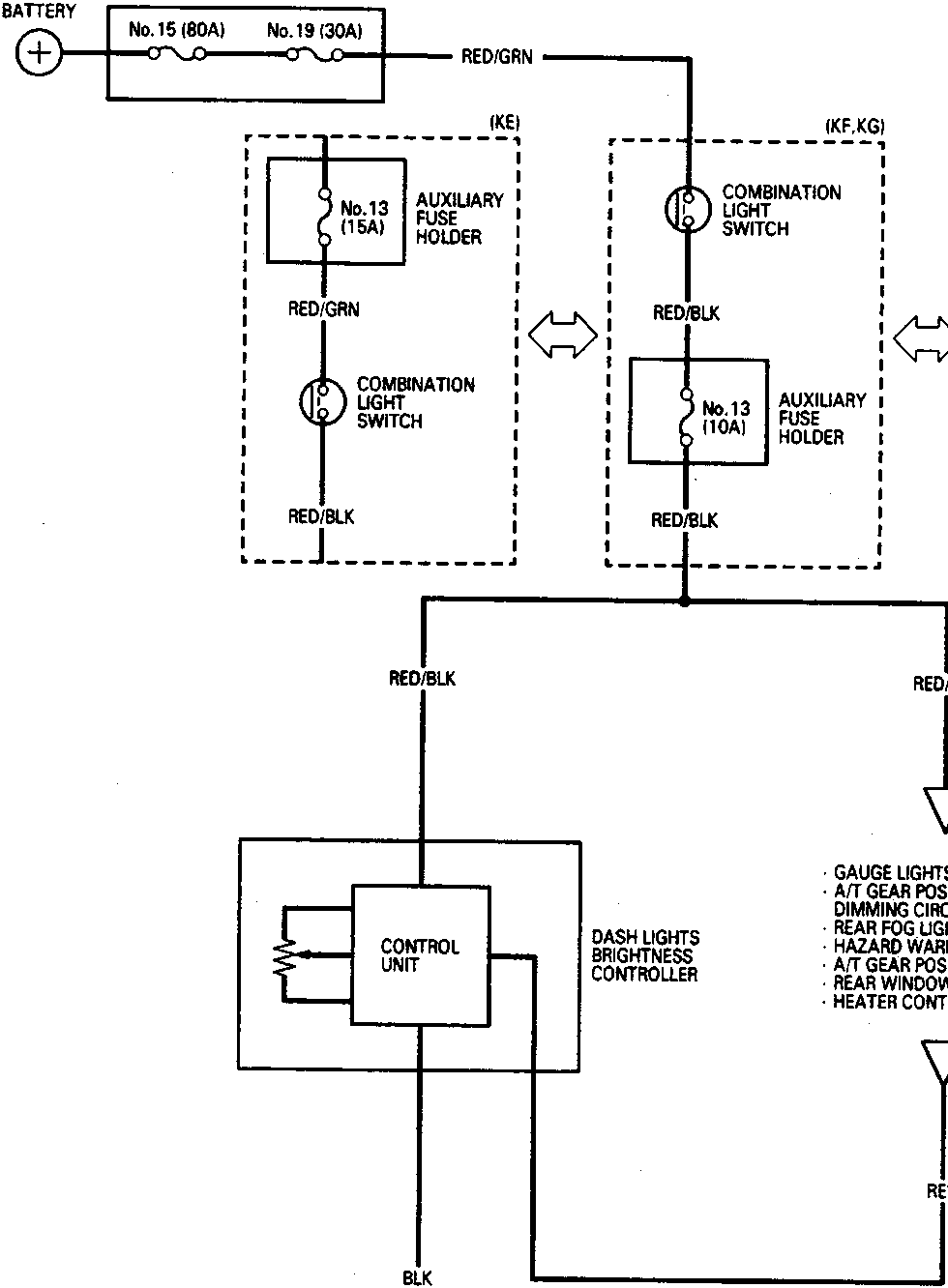

Electrical circuit diagram showing connections from the battery through the under-hood fuse/relay box, auxiliary fuse holders, combination light switches, and dash lights brightness controller to ground G401. Includes wire color codes such as RED/GRN, RED/BLK, and RED.

UNDER-HOOD FUSE/RELAY BOX

  • BATTERY
  • No.15 (80A)
  • No.19 (30A)
  • AUXILIARY FUSE HOLDER No.13 (15A) (KE)
  • AUXILIARY FUSE HOLDER No.13 (10A) (KF,KG)
  • COMBINATION LIGHT SWITCH (KS)
  • DAYTIME RUNNING LIGHTS CONTROL CIRCUIT
  • DASH LIGHTS BRIGHTNESS CONTROLLER
  • CONTROL UNIT
  • G401

GAUGE LIGHTS
A/T GEAR POSITION INDICATOR DIMMING CIRCUIT
REAR FOG LIGHT SWITCH LIGHT
HAZARD WARNING SWITCH LIGHT
A/T GEAR POSITION CONSOLE LIGHT
REAR WINDOW DEFOGGER SWITCH LIGHT
HEATER CONTROL PANEL LIGHT

86M 2208

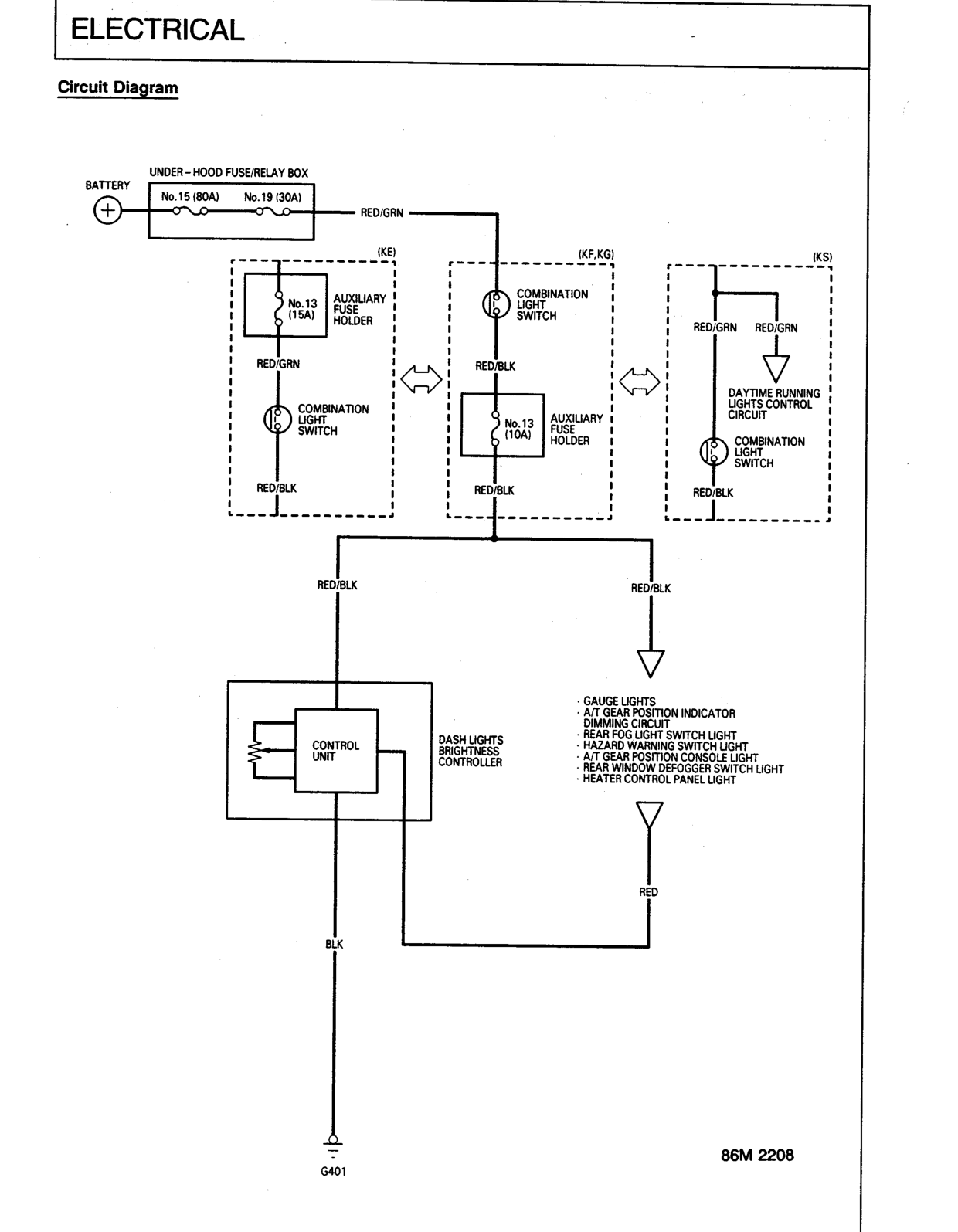

Original page
