ElectricalComponent Location Index

Component Location Index

CAUTION:

  • All SRS electrical wiring harnesses are covered with yellow outer insulation.
  • Replace the entire affected SRS harness assembly if it has an open circuit or damaged wiring.
  • Before disconnecting the SRS wiring harness, turn the ignition switch off, disconnect the negative and positive battery cables, and wait at least three minutes, see SUPPLEMENTARY RESTRAINT SYSTEM

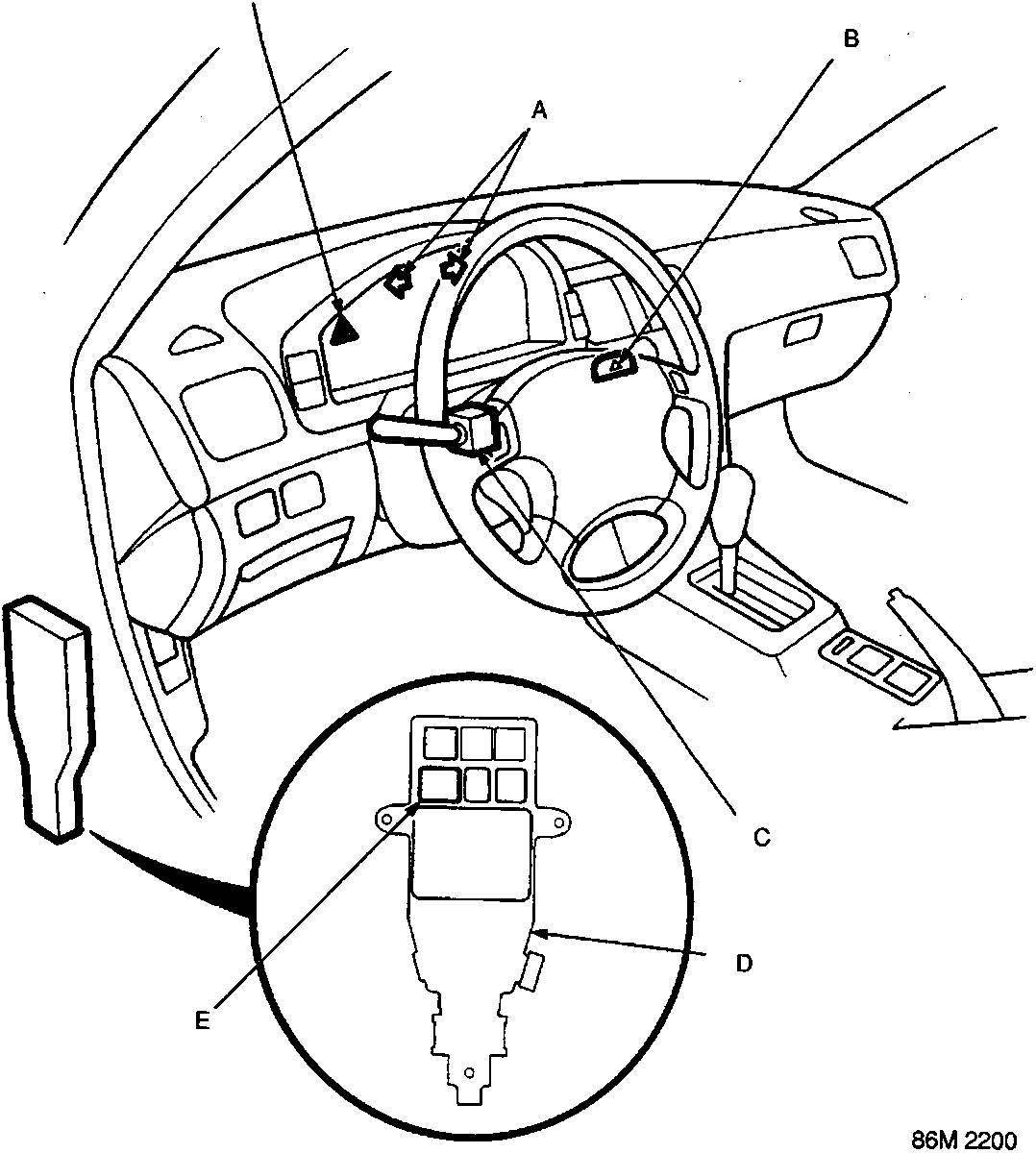

Diagram of vehicle dashboard interior showing locations of indicator lights, switches, relay, and fuse box with callout labels A through F.
ATurn indicator, indicator lightsDPassenger compartment fuse/relay box
BHazard warning switchETurn indicator/hazard relay
CTurn indicator switchFHazard warning light
