Driver's Window Motor Test

Motor Test

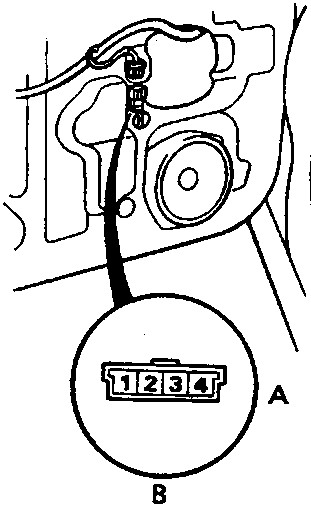

Diagram showing the driver's window motor and a 4-P connector labeled A, with the wiring area highlighted by a red box B.

A View from wire side

B 4–P connector

  1. Remove the door panel see see BODY.
  2. Disconnect the 4–P connector from the motor.
  3. Test the motor by connecting battery power to the No. 3 terminal and earthing the No. 4 terminal. Test the motor in each direction by switching the leads.
  4. If the motor does not run or fails to run smoothly, replace it.

Note: LHD type is shown, RHD type is symmetrical.

Pulser Test

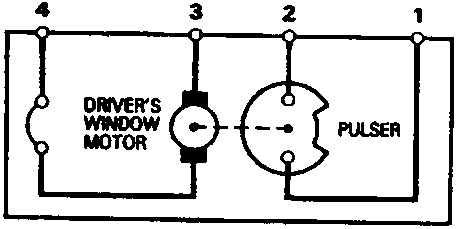

Circuit diagram showing the Driver's Window Motor connected to a Pulser, with terminals numbered 1 through 4.

86M2286

Connect the test leads of an analogue ohmmeter to the No. 1 and No. 2 terminals. Run the motor by connecting power and earth to the No. 3 and No. 4 terminals. The ohmmeter needle should move back and forth alternately.

Passenger Window Motor Test

Motor Test

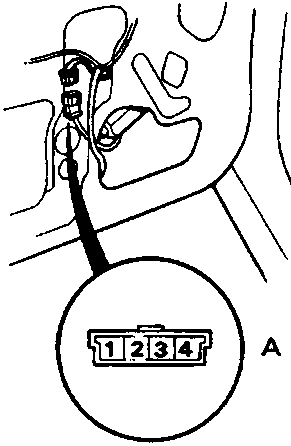

Diagram showing the passenger window motor and a 4-P connector labeled A, with the wiring area highlighted by a red box B.

A View from wire side

B 4–P connector

  1. Remove the door panel, see BODY.
  2. Disconnect the 4–P connector from the motor.
  3. Test the motor by connecting battery power to the No. 3 terminal and earthing the No. 4 terminal. Test the motor in each direction by switching the leads.
  4. If the motor does not run or fails to run smoothly, replace it.

Note: The illustration shows the left rear door.

Pulser Test

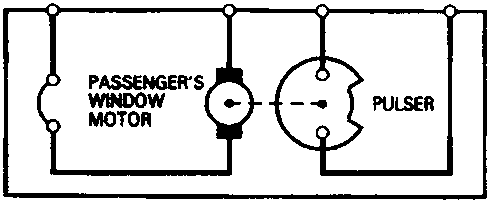

Circuit diagram showing the Passenger's Window Motor connected to a Pulser, with terminals numbered 1 through 4 (with alternate numbers in parentheses).

86M2288

Connect the test leads of an analogue ohmmeter to the No. 3 and No. 4 terminals. Run the motor by connecting power and earth to the No. 1 and No. 2 terminals. The ohmmeter needle should move back and forth alternately.
