Glove box light

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Glove box light
ElectricalGlove box light · page 1 of 2

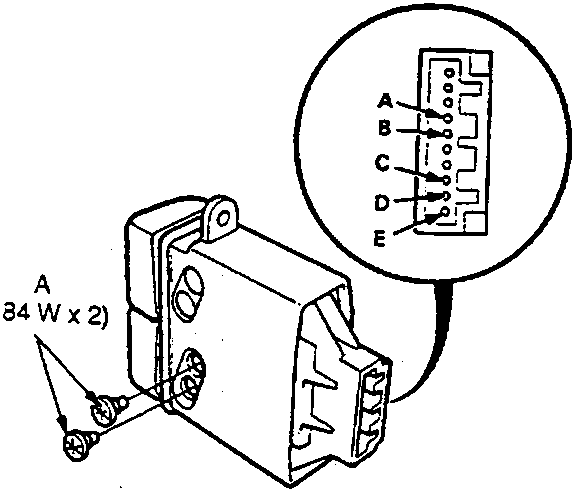

Rear fog light switch assembly with connector terminals labeled A through E and bulb specification (0.84 W x 2)

86M 2177

A    Bulb (0.84W x 2)

Terminal Position A B C D E
OFF ■ B ■ ■ B ■ ■
ON ■ B ■ ■ ■ B ■
  1. Remove the rear fog light switch from the instrument panel.
  2. Check for continuity between the terminals in each switch position according to the table.

GLOVE BOX LIGHT

Test/Replacement

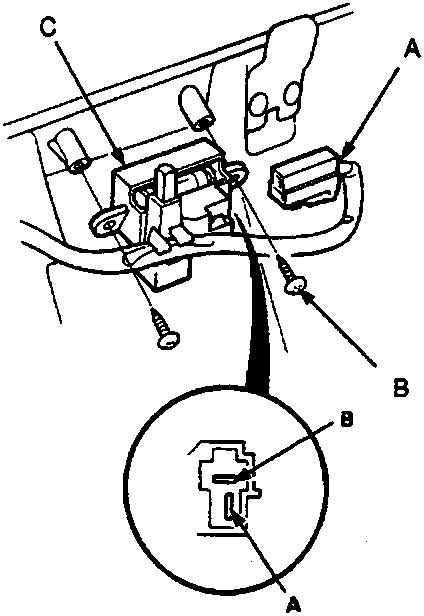

Glove box light assembly showing 2-P connector, screws, and light unit location

86M 2178

A    2 – P Connector
B    Screw
C    Glove box light

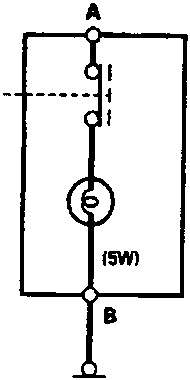

Schematic diagram of glove box light circuit with lid switch and 5W bulb
Lid switch schematic symbol showing open and closed states

G401
86M 2179

A    Glove box lid
B    Open

  1. Open the glove box lid and remove the two screws from the glove box light.
  2. Disconnect the 2 – P connector from the light.
