ElectricalSwitch Test

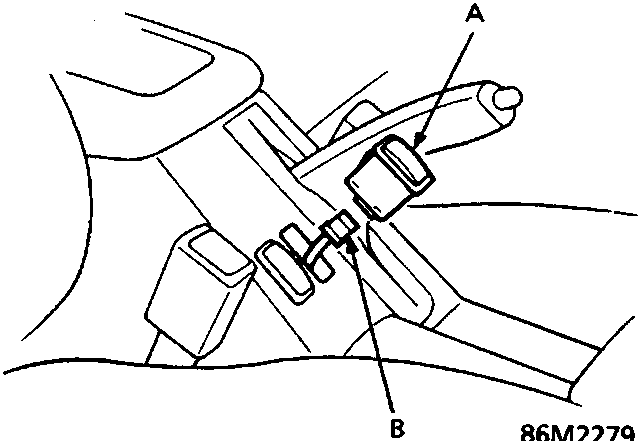

Diagram of the seat heater switch (A) and 6-P connector (B) located in the centre console

A Seat heater switch
B 6 – P connector

  1. Lever the switch out of the centre console.
  2. Disconnect the 6 – P connector from the switch.

Switch Test

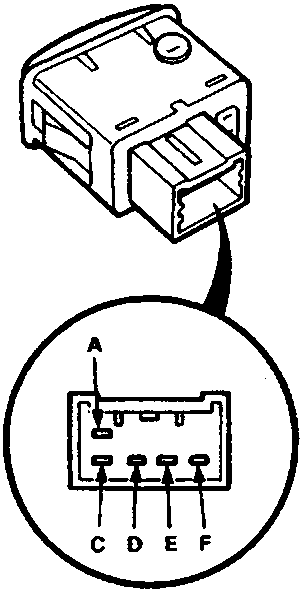

Diagram of the 6-P connector showing terminals A, C, D, E, F

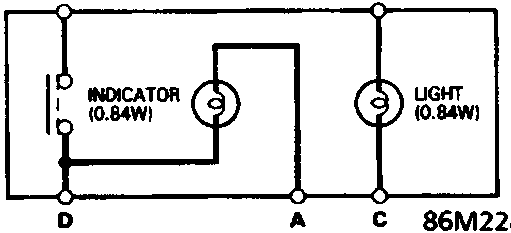

Circuit diagram showing the indicator (0.84W) connected between terminals F and D, and the light (0.84W) connected between terminals E and C
  1. Remove the seat heater switch from the centre console.
Terminal PositionADFEC
ONBB
OFFBB
  1. Check for continuity between the terminals according to the table.
