Repairs › Reversing lights
ElectricalReversing lights

REVERSING LIGHTS

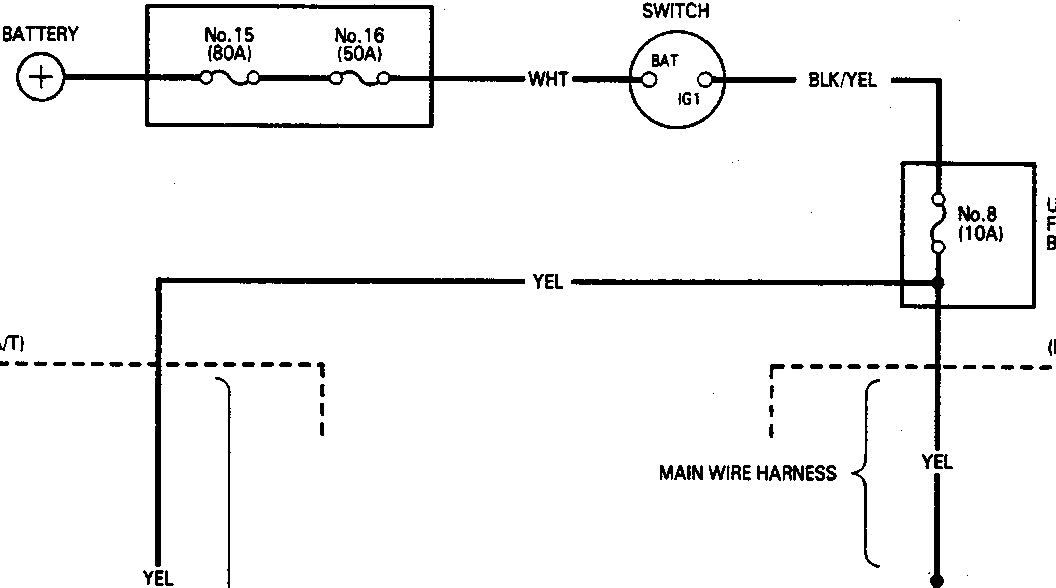

Circuit Diagram

Electrical circuit diagram for reversing lights showing connections from battery through fuse/relay boxes, ignition switch, gear position switch, back-up light switch, and back-up lights to ground. Includes labels for wire colors (WHT, BLK/YEL, YEL, GRN/BLK, BLK), harness sections (MAIN, ENGINE, FLOOR, REAR), and component locations (UNDER-HOOD, UNDER-DASH). Dashed lines distinguish A/T and M/T configurations.
  1. BATTERY
  2. UNDER-HOOD FUSE/RELAY BOX
  3. IGNITION SWITCH
  4. UNDER-DASH FUSE/RELAY BOX
  5. A/T GEAR POSITION SWITCH (Back-up light switch)
  6. BACK-UP LIGHT SWITCH (On the transmission case)
  7. BACK-UP LIGHTS (21Wx2)

LHD : G501
RHD : G701

86M 2196
