Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition18 · Electrical
18 · Electrical

Battery replacement

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Battery replacement
ElectricalBattery replacement

Note: This test also applies to the Keyless Entry and Security Alarm System

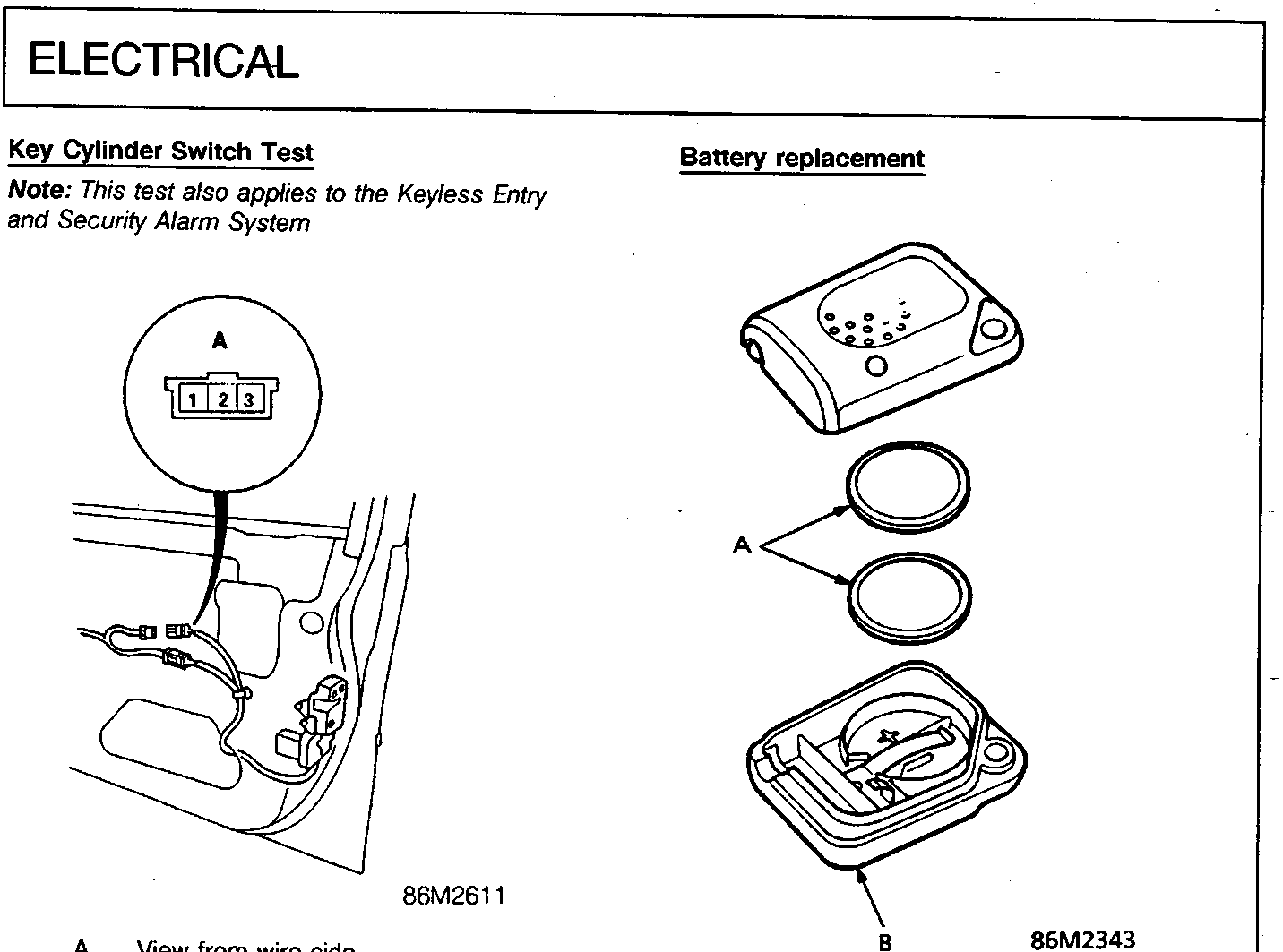

Diagram showing a connector labeled A with terminals 1, 2, and 3, connected to wiring under a dashboard. Caption: 86M2611. A View from wire side
  1. Remove the driver's door panel, see BODY.
  2. Disconnect the 3-P connector from the key cylinder switch.
PositionTerminal
LOCK123
UNLOCK123
Schematic diagram of switch continuity showing terminals 1, 2, and 3. Terminals 2 and 3 are connected in UNLOCK position; terminals 1 and 2 are connected in LOCK position. Caption: 86M2610
  1. Check for continuity between the terminals in each switch position according to the table.

Battery replacement

Exploded view of a car transmitter showing the battery (A) being removed from the transmitter casing (B). Caption: 86M2343

A Battery
B Transmitter

Disassemble the transmitter and replace the battery.
