Repairs › Motor Test
ElectricalMotor Test

Motor Test

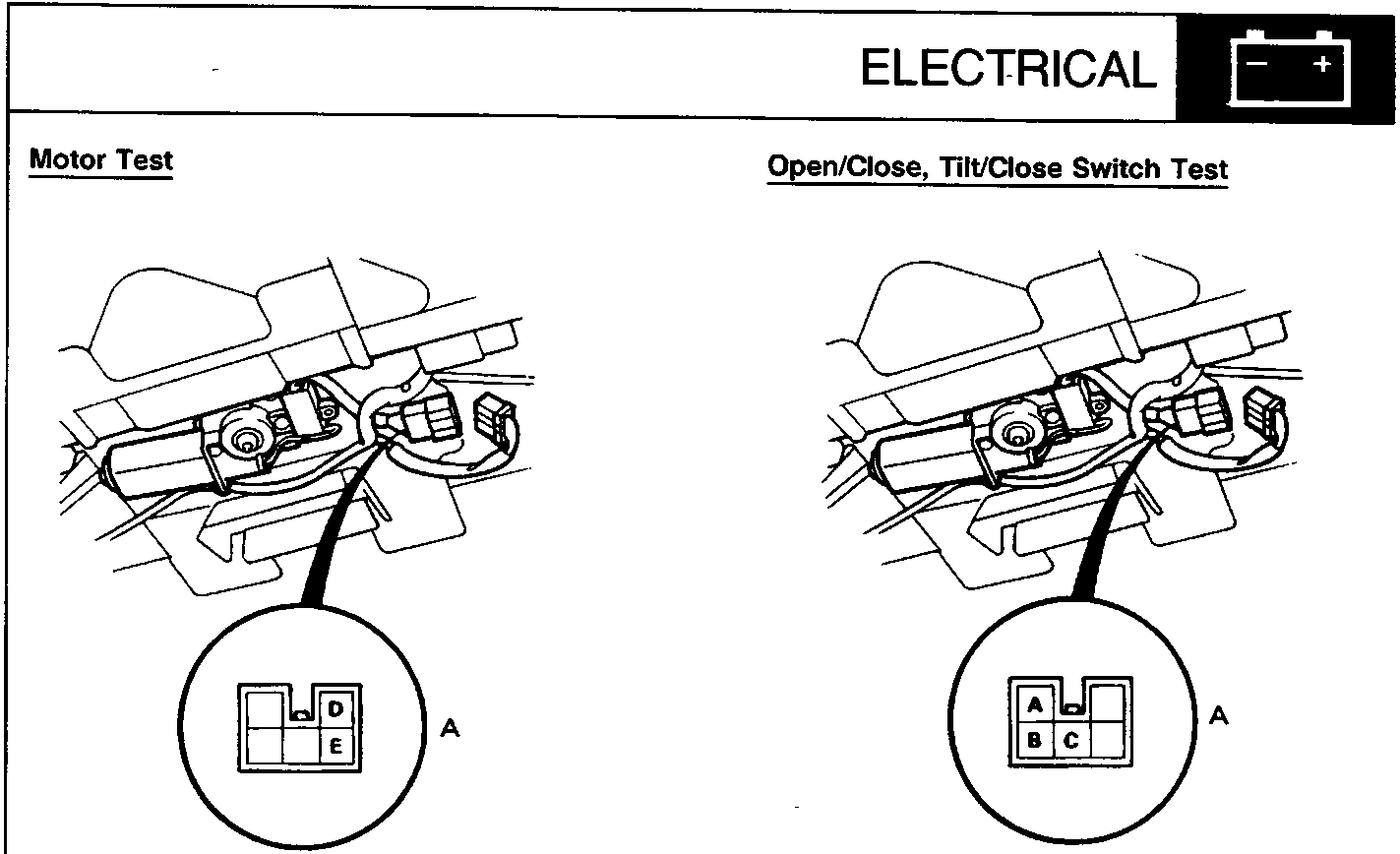

Diagram showing sun roof motor and connector B with terminals D and E visible from wire side A

86M2270

A View from wire side
B 5 – P connector

  1. Remove the roof lining, see BODY.
  2. Disconnect the 5 – P connector from the sun roof motor.
TerminalDE
Position
OPEN+–
CLOSE–+
  1. Test the motor:

Note: see BODY for the motor clutch test.

  1. If the motor does not run or fails to run smoothly, replace it.

Open/Close, Tilt/Close Switch Test

Diagram showing sun roof motor and connector B with terminals A, B and C visible from wire side A

86M2271

A View from wire side
B 5 – P connector

  1. Remove the roof lining see see BODY.
  2. Disconnect the 5 – P connector from the motor.
TerminalABC
Position
Tilted up[continuity symbol]
Fully closed
Fully open[continuity symbol]

Note: Turn the motor by hand with the wrench.

  1. Check for continuity between the terminals in each switch position according to the table.
  2. If there is no continuity, replace the sun roof motor assembly.

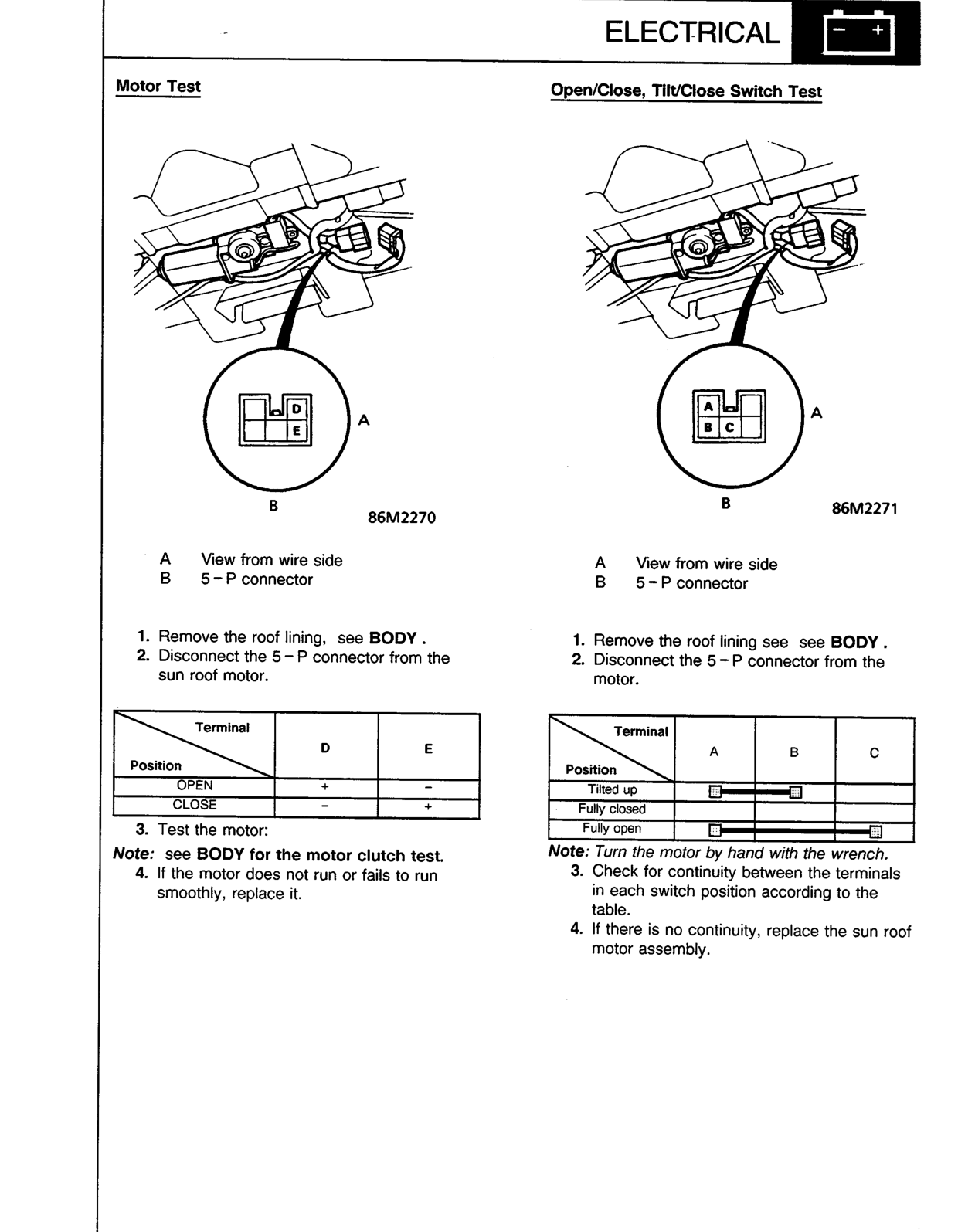

Original page
