Original page
- Make
- Rover
- Model
- 600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
- Section
- Repairs › Original page
‹ Prev KEYLESS ENTRY SYSTEM (KE) Without Security Alarm SystemNext › Keyless Entry System (Without security alarm system)
ElectricalOriginal page

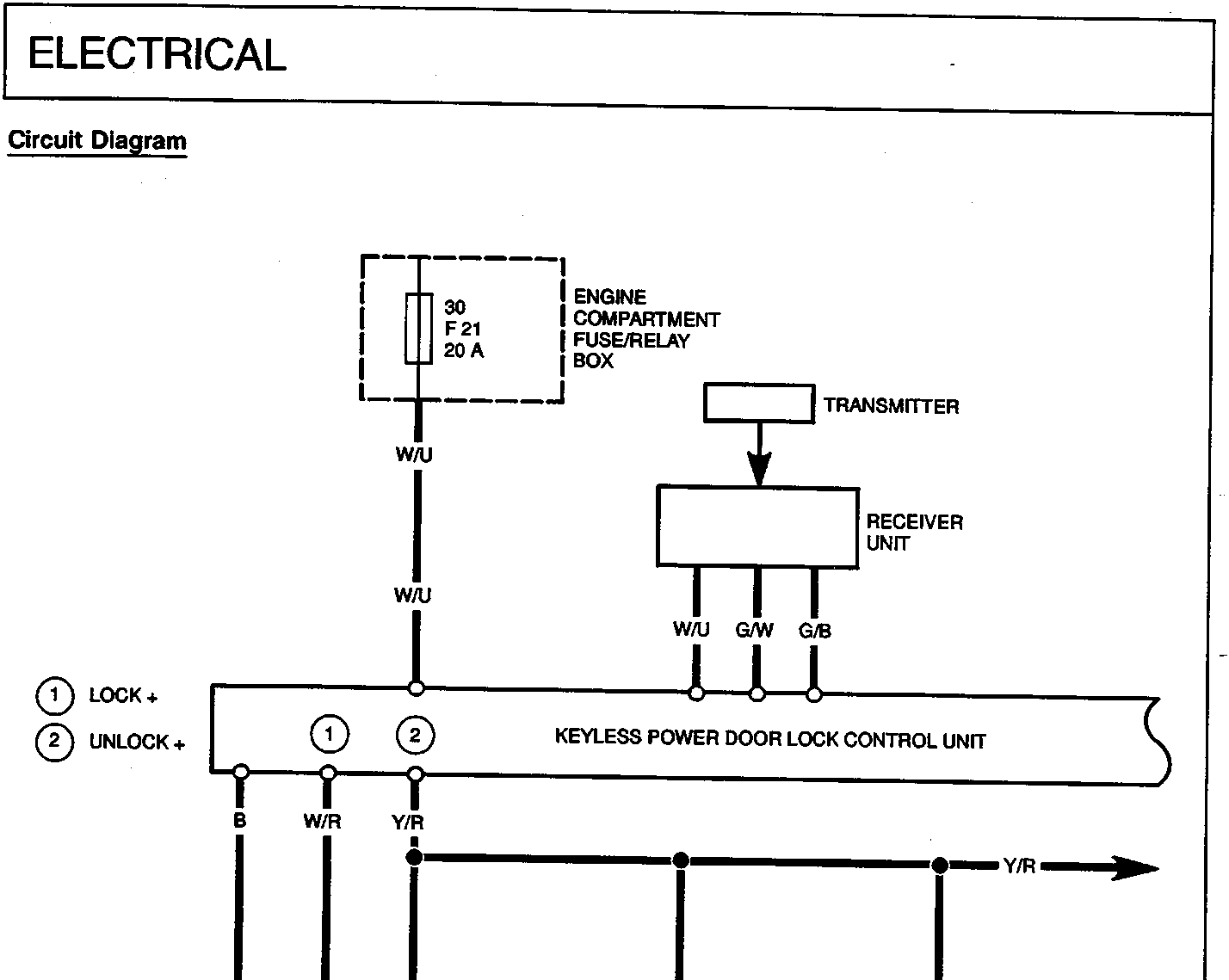

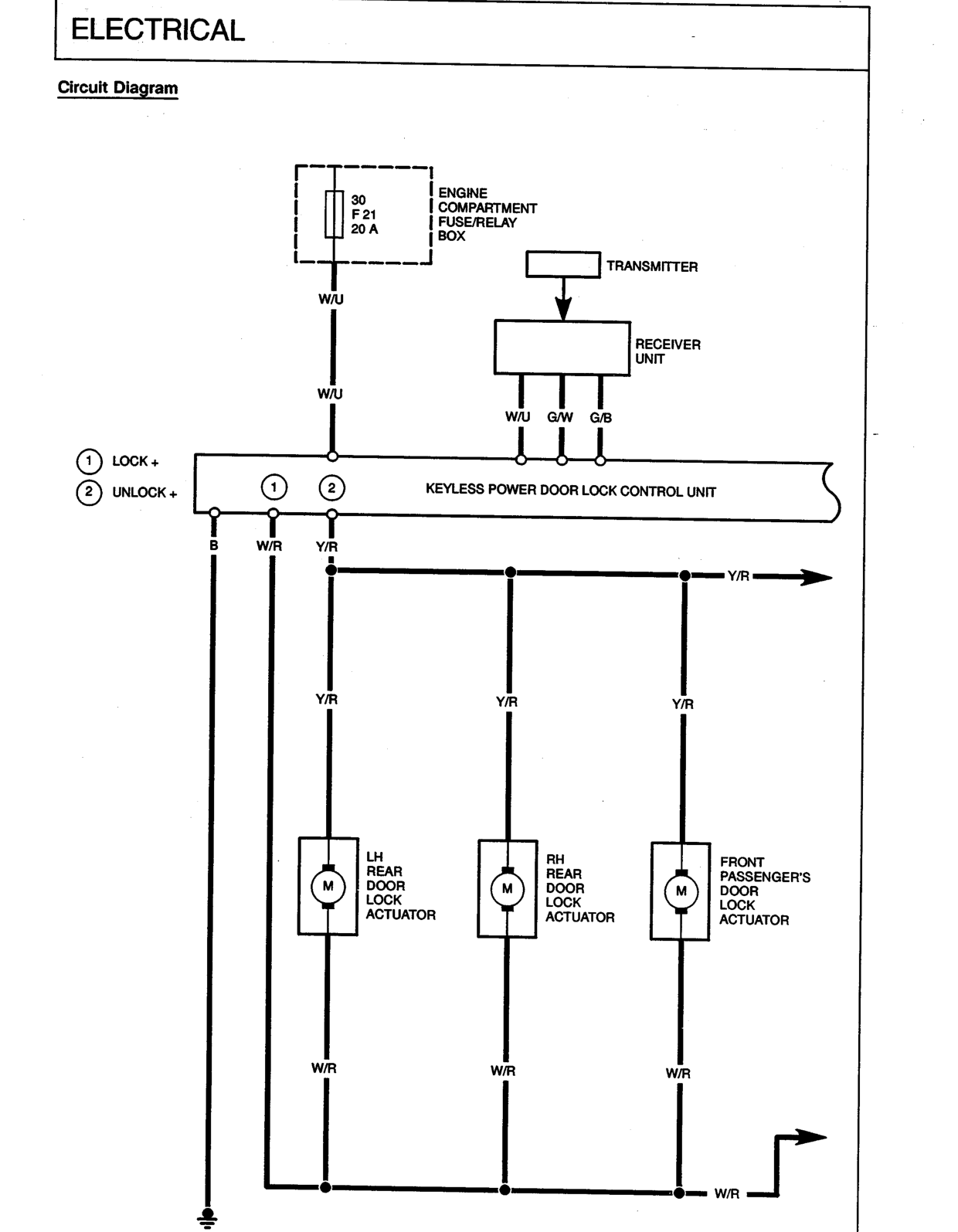

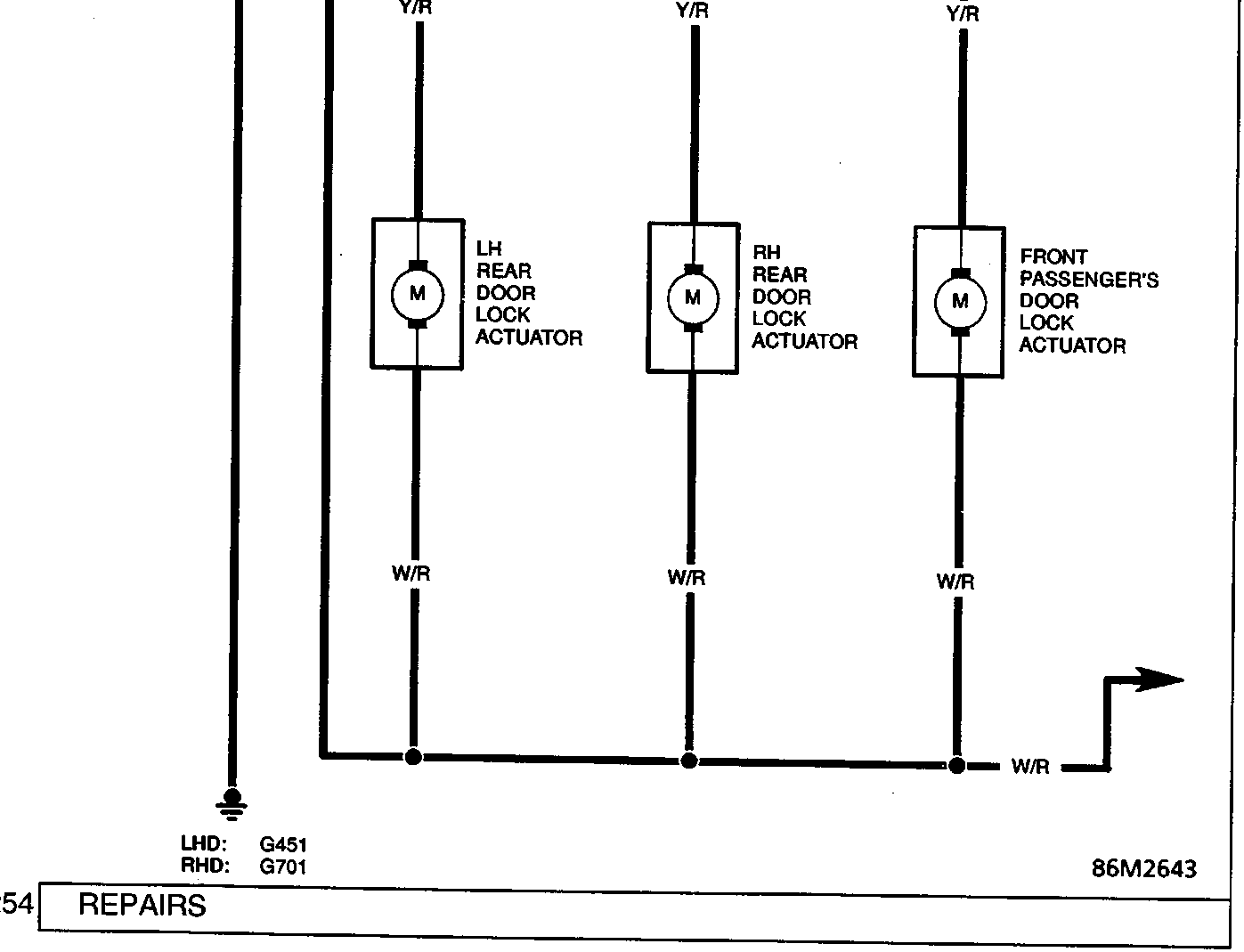

Original page – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.
Original page
‹ Prev KEYLESS ENTRY SYSTEM (KE) Without Security Alarm SystemNext › Keyless Entry System (Without security alarm system)
