Door Switch Test

Make
Rover
Model
600 Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition
Section
Repairs › Door Switch Test
ElectricalDoor Switch Test

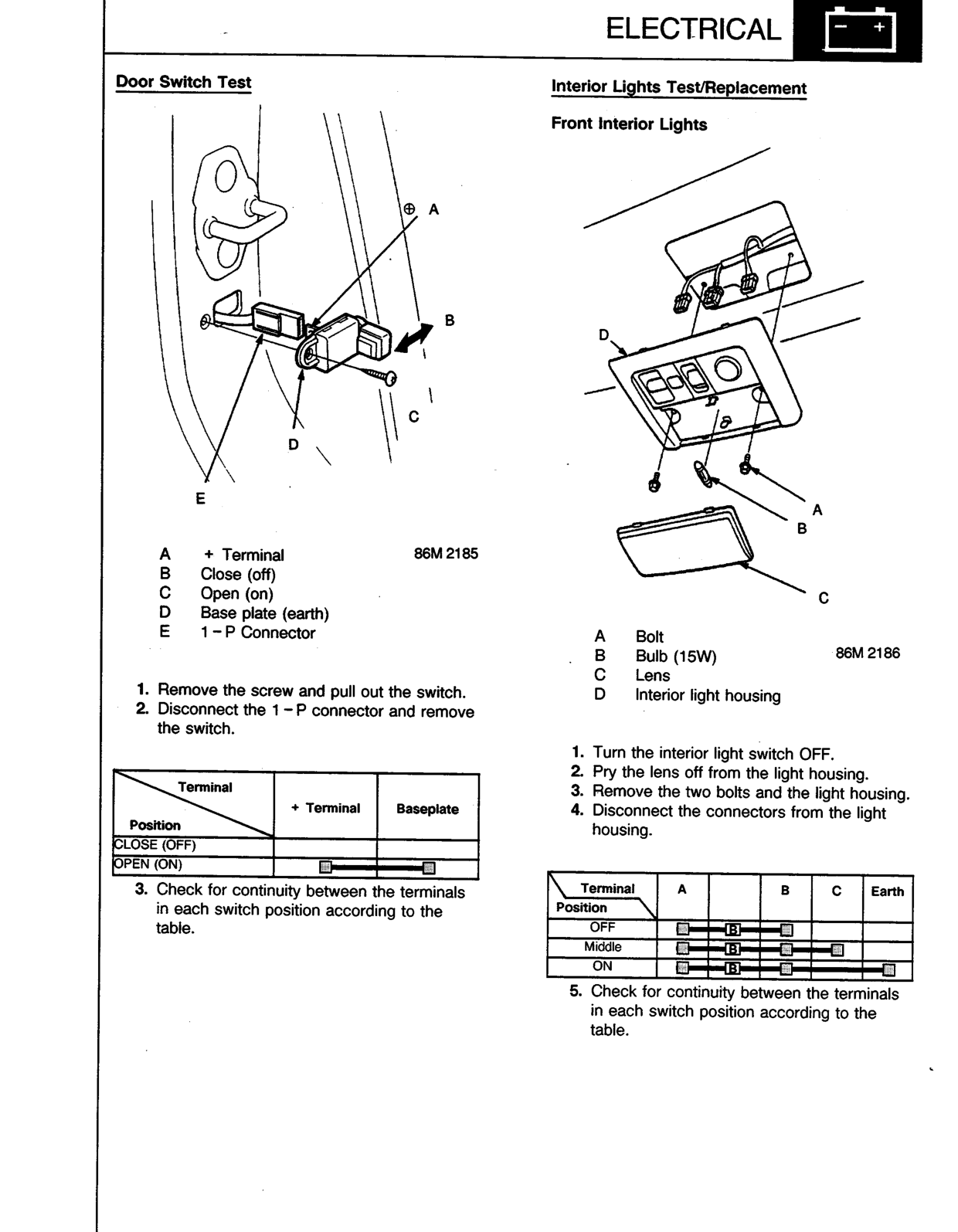

Door Switch Test

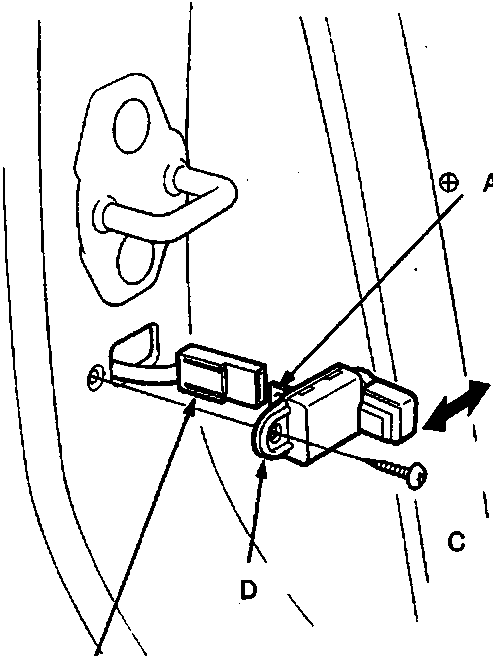

Diagram of door switch assembly with callouts A through E

A    + Terminal

B    Close (off)

C    Open (on)

D    Base plate (earth)

E    1 – P Connector

86M 2185

  1. Remove the screw and pull out the switch.
  2. Disconnect the 1 – P connector and remove the switch.

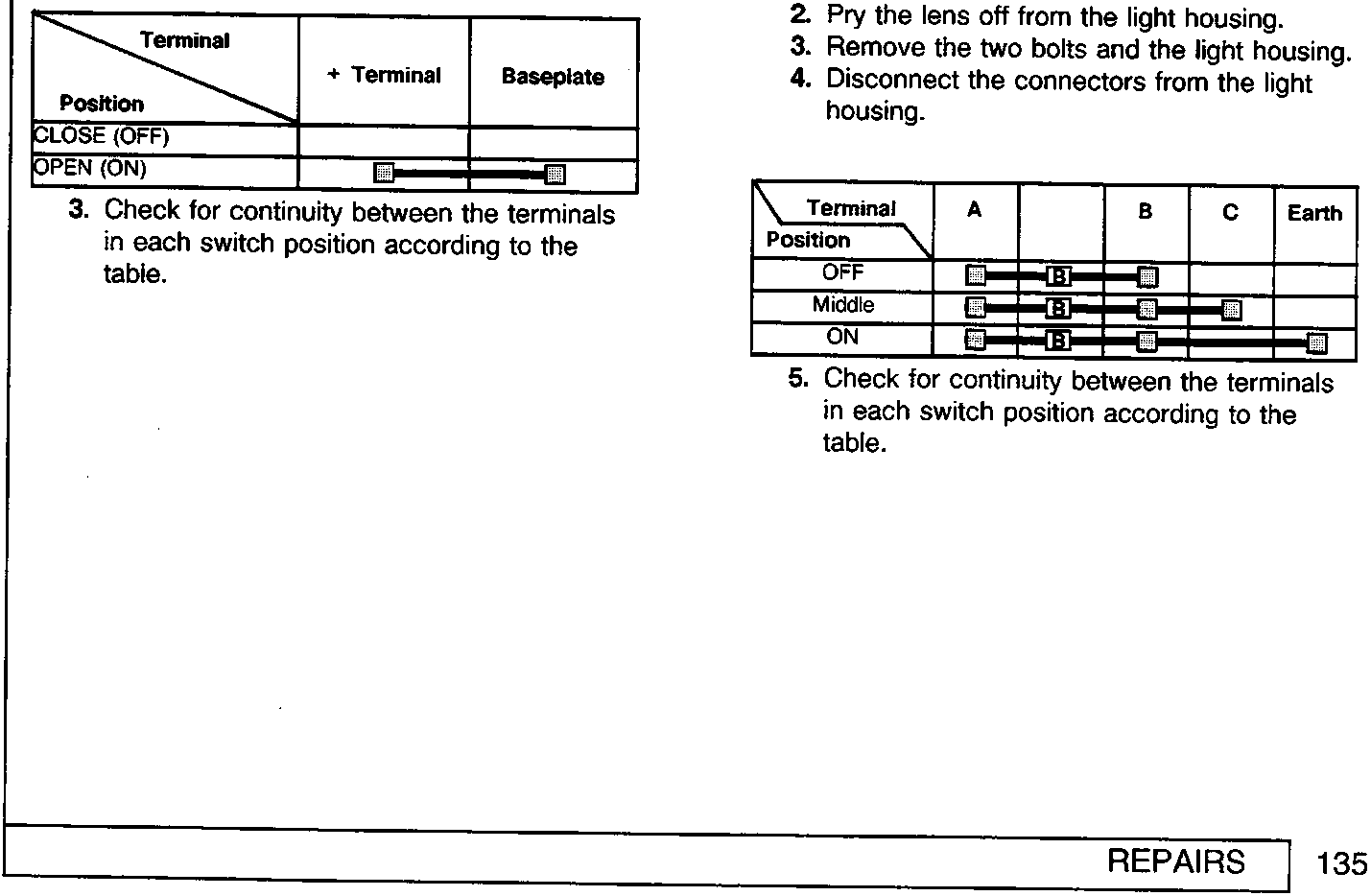

Continuity test table for door switch showing positions CLOSE (OFF) and OPEN (ON)
  1. Check for continuity between the terminals in each switch position according to the table.

Interior Lights Test/Replacement

Front Interior Lights

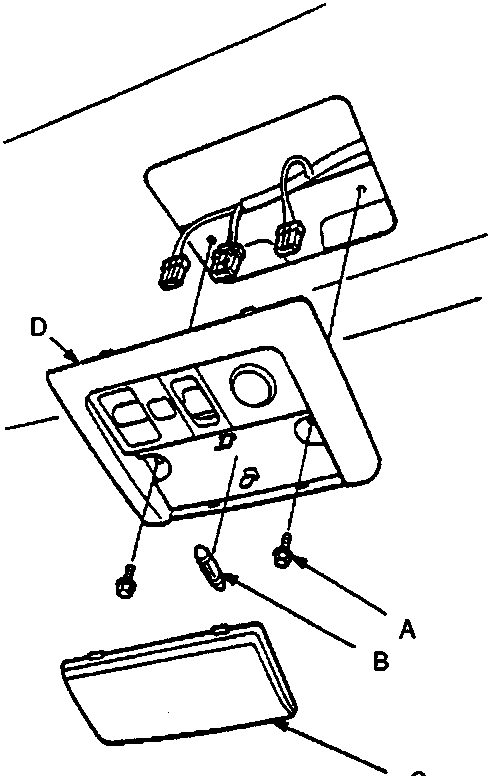

Exploded diagram of front interior light housing with callouts A through D

A    Bolt

B    Bulb (15W)

C    Lens

D    Interior light housing

86M 2186

  1. Turn the interior light switch OFF.
  2. Pry the lens off from the light housing.
  3. Remove the two bolts and the light housing.
  4. Disconnect the connectors from the light housing.
Terminal
Position		ABCEarth
OFF■[B]■
Middle■[B]■■
ON■[B]■■■
  1. Check for continuity between the terminals in each switch position according to the table.
