ElectricalComponent Location Index

Component Location Index – diagram from the Electrical chapter of the Rover Rover 600 Repair Manual - Volumes 1 and 2 - 2nd Edition factory manual.

Component Location Index

Note: LHD type is shown, RHD type is similar.

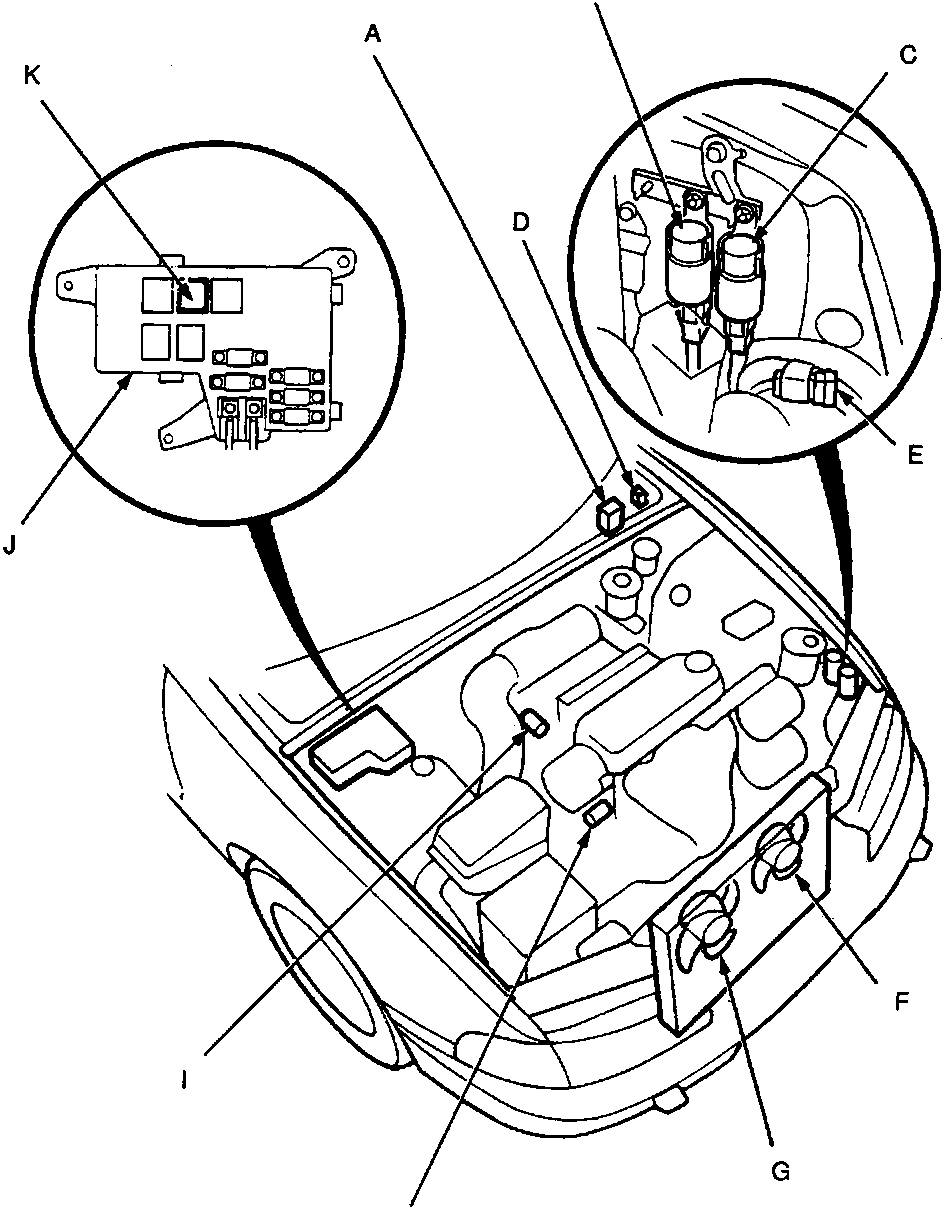

Diagram of the engine compartment showing component locations with callouts A through K. Two circular insets provide magnified views of specific areas (left inset shows a fuse/relay box assembly; right inset shows two cylindrical components near the firewall). The diagram is labeled 86M 2077 at the bottom right.
